1. Kokios spalvos yra Lian Li HydroShift II LCD-S 360TL versija?

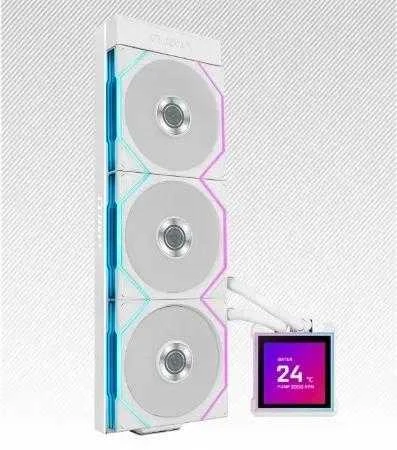

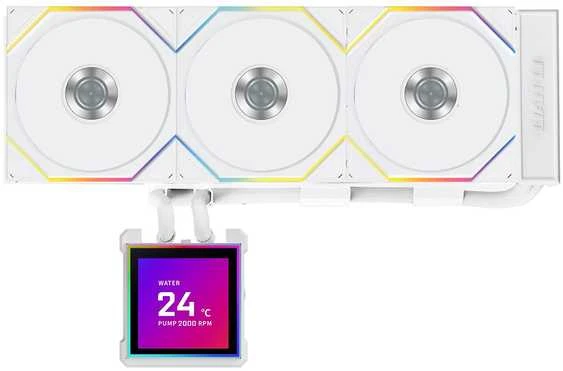

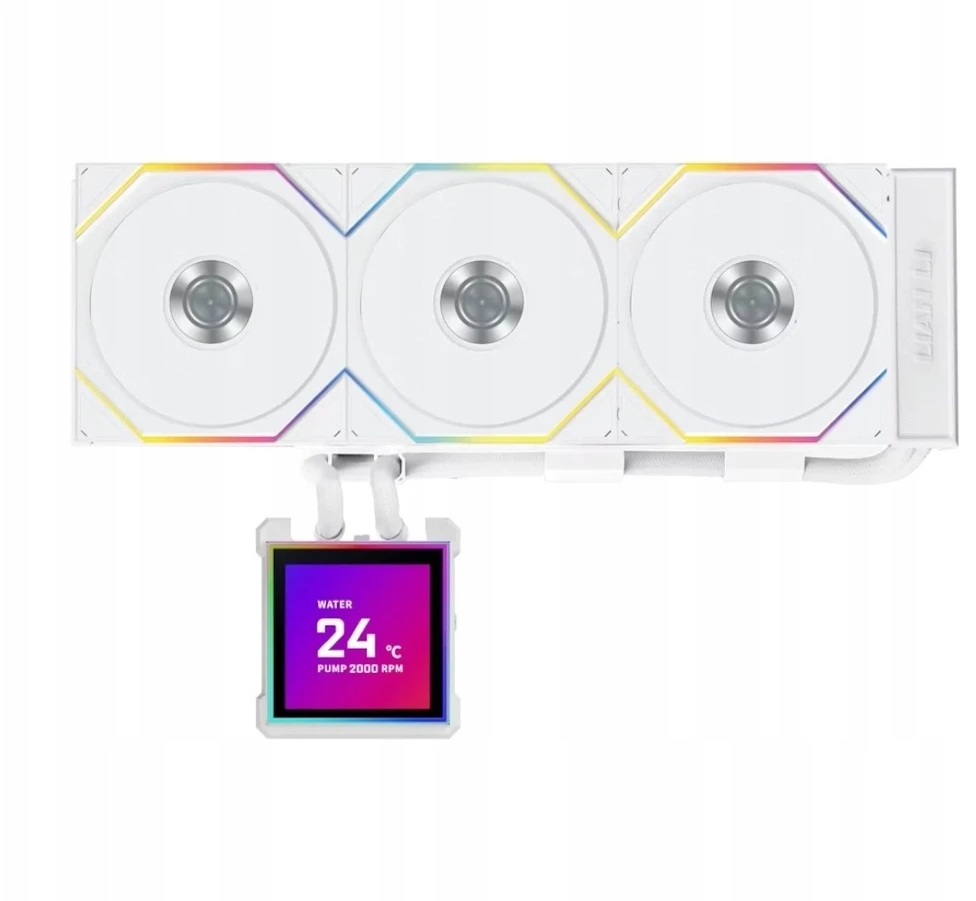

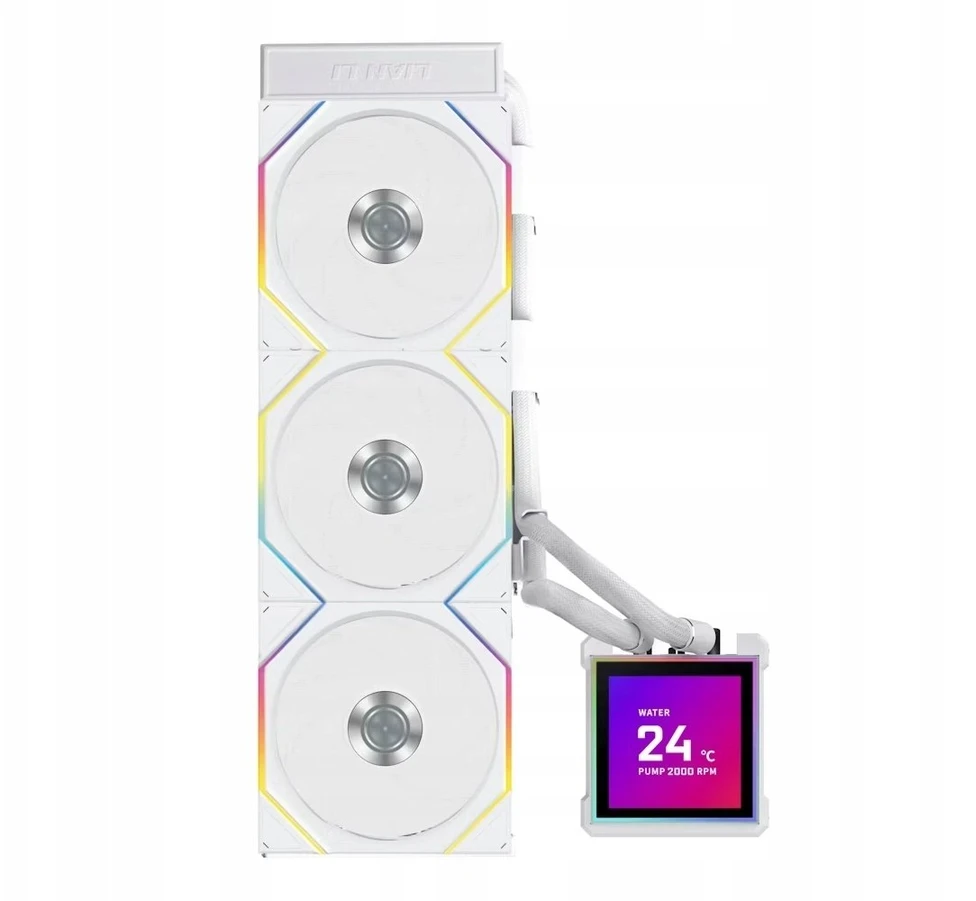

Šio aušintuvo radiatorius, ventiliatorių rėmeliai ir sparnuotės yra balti. Pats gaminys pagamintas baltos spalvos, todėl puikiai tinka šviesiems kompiuterių korpusams.

2. Kaip montuojamas šio vandens aušintuvo siurblio blokas?

Įrenginys turi dviejų dalių siurblio konstrukciją. Pagrindinis blokas montuojamas pirmiausia, o 3.4 colio IPS ekranas vėliau lengvai pritvirtinamas magnetais ir kontaktais.

3. Ar komplekte yra ventiliatoriai ir keli jų?

Kartu su aušintuvu gausite tris UNI FAN TL Wireless 120 mm RGB ventiliatorius, kurių rėmeliai ir sparnuotės yra baltos spalvos. Visi jau yra paruošti montavimui.

4. Kaip išvengiama laidų netvarkos šiame modelyje?

Laidai yra integruoti į vandens žarnas, todėl kompiuterio korpuso viduje juos slėpti yra nereikalinga. Tai suteikia sistemai labai švarų ir tvarkingą vvk.

5. Kokios yra triukšmo lygio vertės esant didžiausiam darbui?

Maksimalus siurblio triukšmas siekia 28 decibelus, o vieno ventiliatoriaus garsas gali pasiekti 33 decibelus. Radiatoriaus storis yra 24 milimetrai.

Lian Li HydroShift II LCD-S 360TL...

Lian Li Kompiuterių korpusai | Lian Li Aušintuvai

360mm AiO with 3.4-inch IPS display, integrated cable management in the tubes, three UNI FAN TL Wireless 120mm RGB fans, easy installation for Intel & AMD, with L-Connect 3 controller

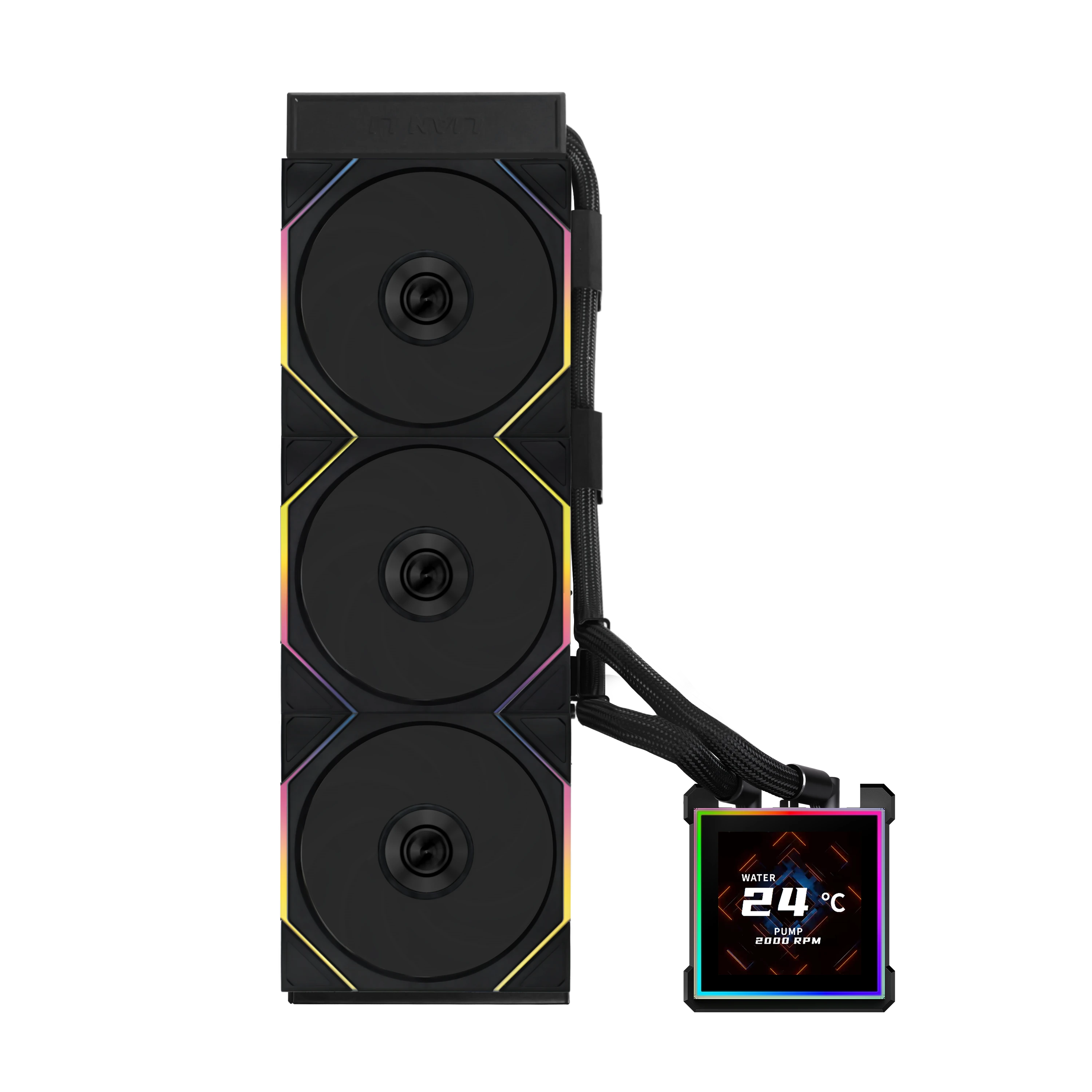

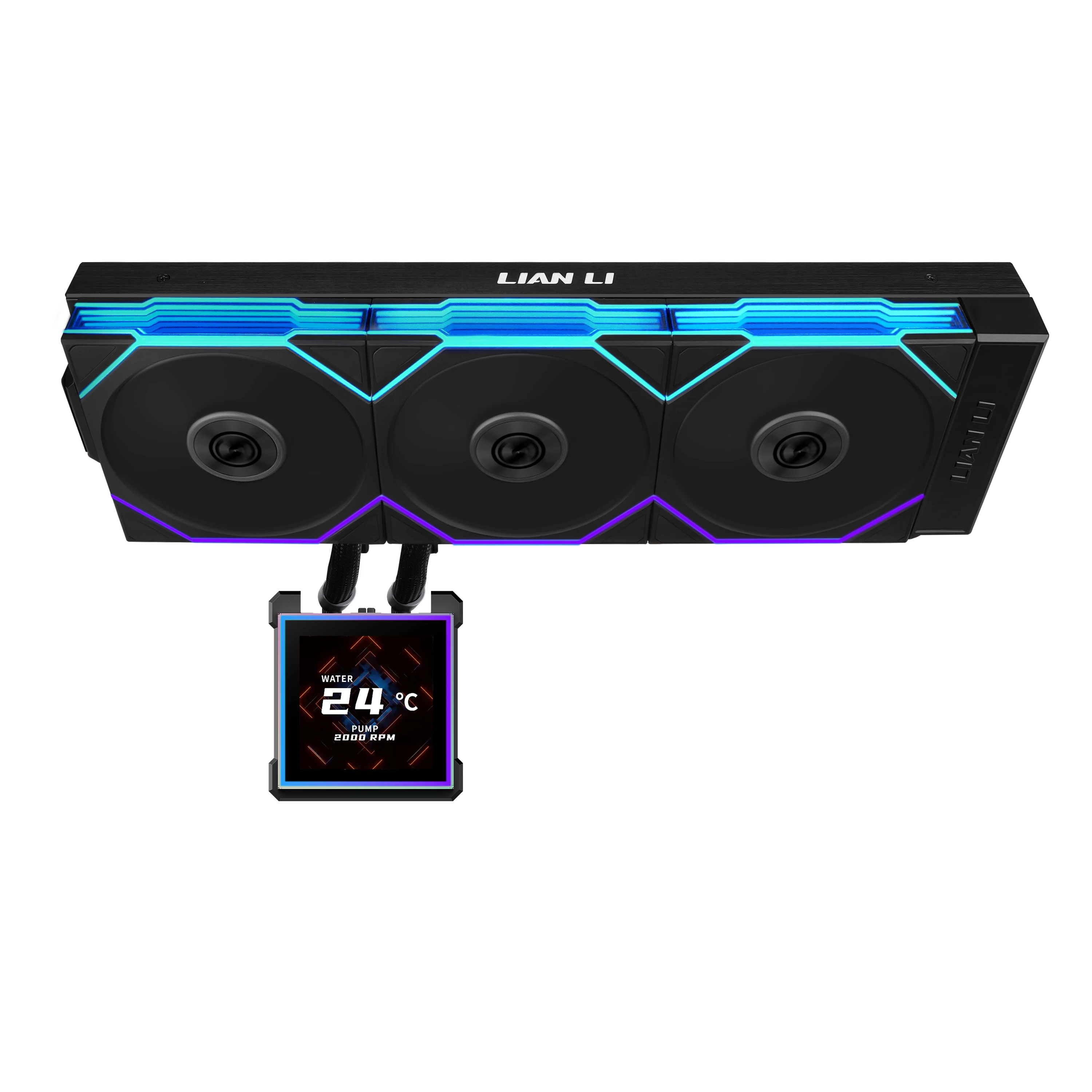

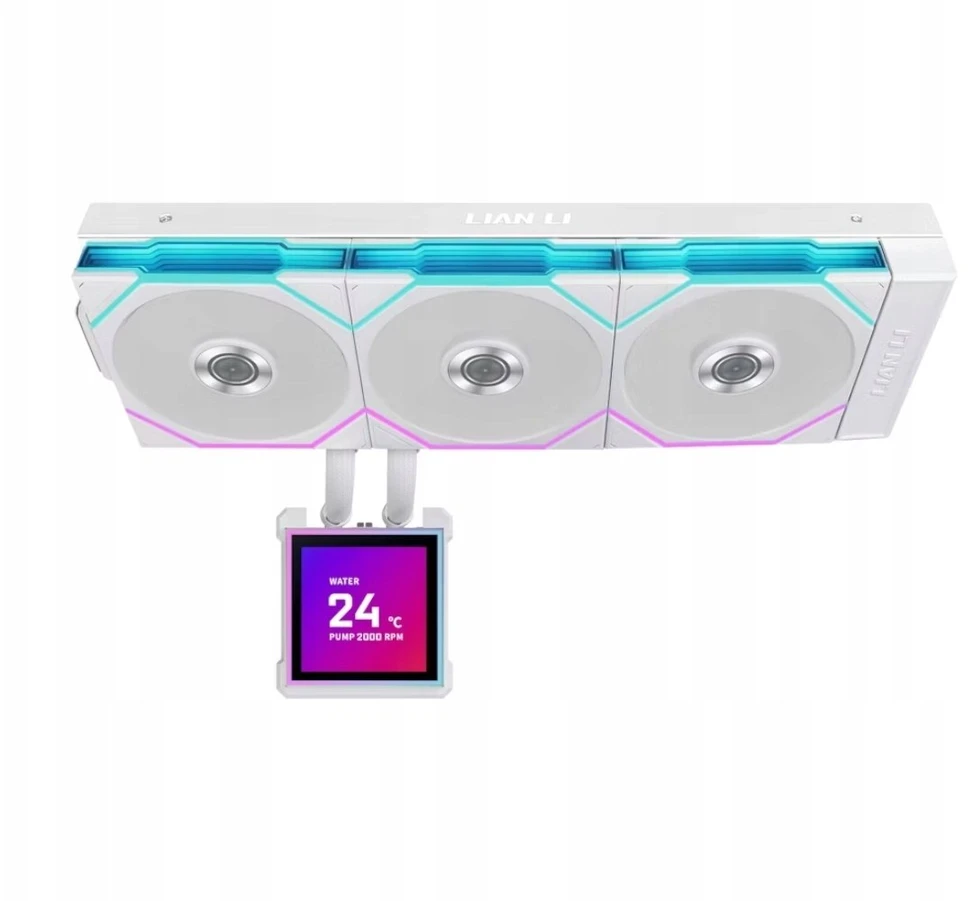

Lian Li HydroShift II LCD-S 360TL AiO Vanduo Cooling, RGB, LCD Ekranas – 360mm, baltas aprašymas - Prekės nuotrauka

The Lian Li HydroShift II LCD-S 360TL delivers powerful cooling and a particularly clean look. Thanks to its two-piece pump design, installation is quick and easy. On top of the pump sits a 3.4-inch IPS LCD , and included in the box are three UNI FAN TL Wireless 120mm RGB fans . Everything is conveniently controlled via L-Connect 3 .

3.4-inch IPS Display: 480 × 480 pixel resolution at 60 Hz
Clean Design: Cables are integrated into the tubing
3× UNI FAN TL Wireless: 120mm RGB fans included
Multiple Control Modes: Offline, wireless, or via USB with L-Connect 3
L-Connect 3 Controller: Easy control of lighting and fan speed through L-Connect 3

Lian Li HydroShift II LCD-S 360TL: Easy Installation with Two-Piece Pump Block

The HydroShift II LCD-S 360TL is easy to install in most standard PC cases. The pump is split into two parts – the main block is mounted first, and the LCD module can then be easily attached using magnets and contact points. This saves time and greatly simplifies assembly.

Optimized Pump for Maximum Performance

The redesigned pump provides improved heat dissipation. Its bigger cold plate transfers heat more efficiently to the coolant. With a minimum noise level of just 20.5 dB(A), it delivers powerful CPU cooling while staying whisper-quiet.

LCD Display & RGB for a Clean Setup

You decide what’s displayed on the 3.4-inch IPS display – from live system stats to videos. Surrounding the display is elegant RGB lighting. The included UNI FAN TL fans enhance the overall design with their own RGB illumination , which can be synchronized or controlled separately. The result is a unified, customizable look for your system.

More Control: Offline Mode, Wireless, or USB

Offline Mode: No connection required. The pump displays data such as CPU temperature and coolant flow via integrated sensors.
Wireless Mode: Connect via 2.4 GHz to the L-Wireless Controller and manage display content & RGB lighting in L-Connect 3 (includes PC sensor data such as GPU temperature, CPU clock, and RAM usage).
USB Connected: Maximum customization with templates or your own JPG/GIF/MP4 content. The display can even be used as a secondary monitor .

With clean cable routing inside the tubing, easy installation, and excellent cooling performance, the Lian Li HydroShift II LCD-S 360TL is the perfect AiO cooler for stylish, clutter-free builds with Intel or AMD CPUs.

Specification

Colour
Primary Colour	White
Fan Main Colour (Frame)	White
Fan Main Colour (Rotor)	White
Main radiator colour (cage)	White
Main radiator colour (fins)	White

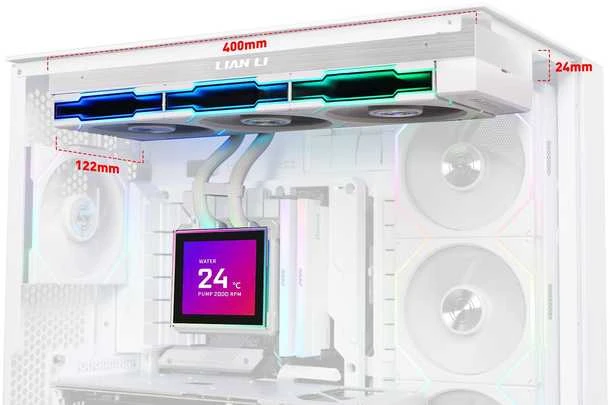

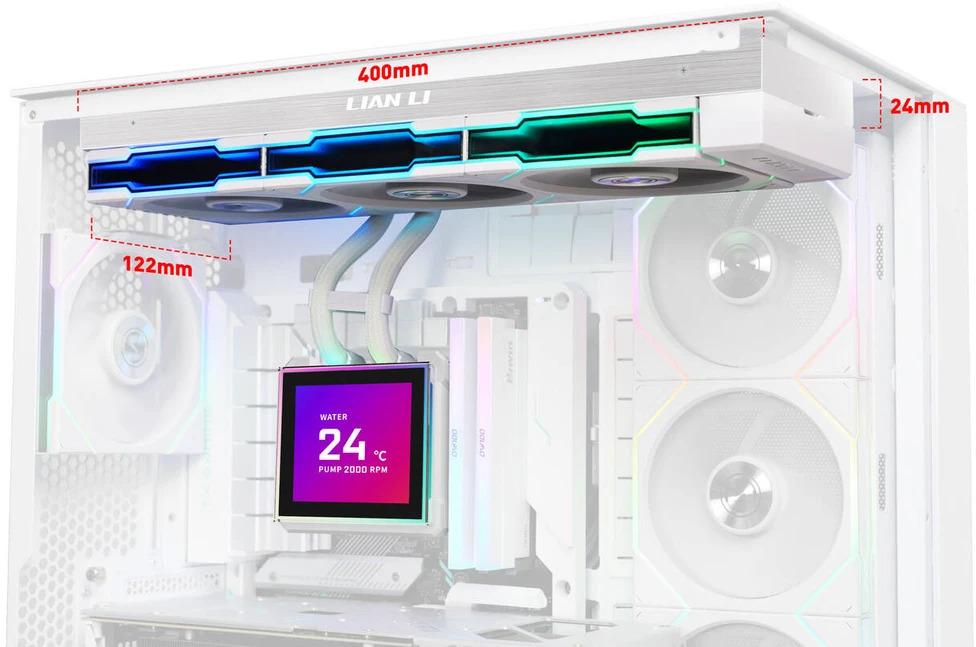

Dimensions
Length / Depth	400 mm
Width	122 mm
Height	24 mm
Fan height	28 mm
Radiator Size	360 mm
Radiator Height	24 mm
Radiator Height With Fan	52 mm
Tube length	470 cm
Type
CPU Cooler Type	AiO Liquid Cooler
CPU
CPU Socket	1700, 1851, AM4, AM5
Display
Display Included	Yes
Fan Specifications
Fan Size	120 mm
Fan Support
Included fans	3
Noise
Max. Pump Noise dB(A)	28 dB(A)
Max. Single Fan Noise	33 dB(A)
Internal Ports
Fan connectors	4 Pin (PWM)
Pump connectors	4 Pin (PWM control)
RGB / LED connectors	1x Digital RGB (3-Pin 5VDG)
Materials
Materials	Aluminium
Lighting
Lighting / RGB	Yes
Lighting Colour	RGB
Product Series
Product Series/Family	HydroShift II
Additional Contents
Included fans	3x 120 mm
