Kolink Umbra EX180 ARGB CPU Cooler –...

Black single-tower cooler, one 120mm ARGB PWM fan, four 6mm copper heatpipes, slim design with high RAM compatibility, for CPUs with up to 180W TDP

High-performance single-tower cooler with 4 copper heatpipes
Powerful 120 mm ARGB PWM fan
Minimalistic all-black looks
Slim design with high RAM compatibility
For CPUs with up to 180 W TDP

The Umbra EX180 ARGB: High-Performance Single-Tower CPU Cooler

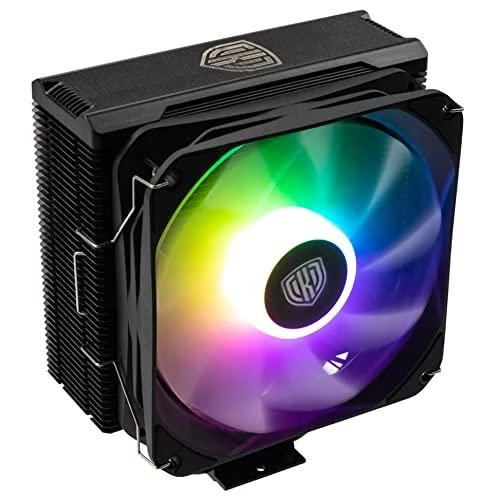

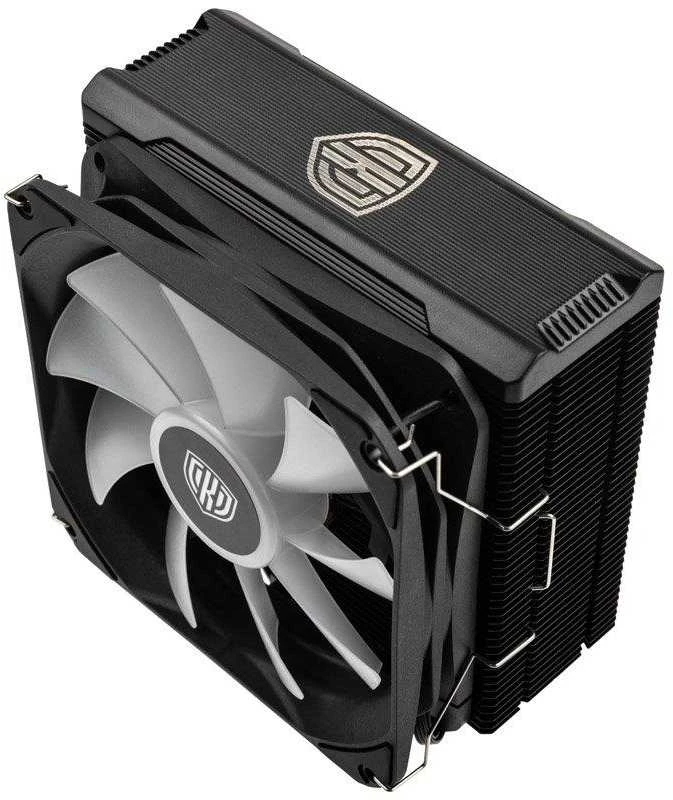

The Umbra EX180 ARGB is a high-performance single-tower CPU cooler. Equipped with four 6 mm copper heatpipes and the powerful 120 mm fan, it is up to the task to deal with CPUs with up to 180 W TDP. The highlight of the matte all-black design is the ARGB PWM fan with its digitally addressable RGB lighting. The mounting system and the asymmetrical design with high RAM compatibility allow for an easy installation.

The Umbra EX180 ARGB in Detail

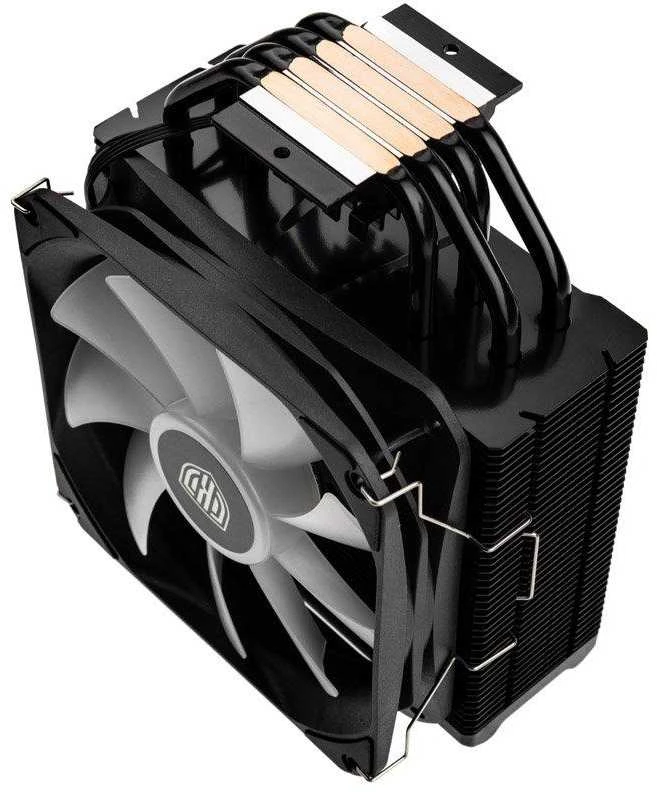

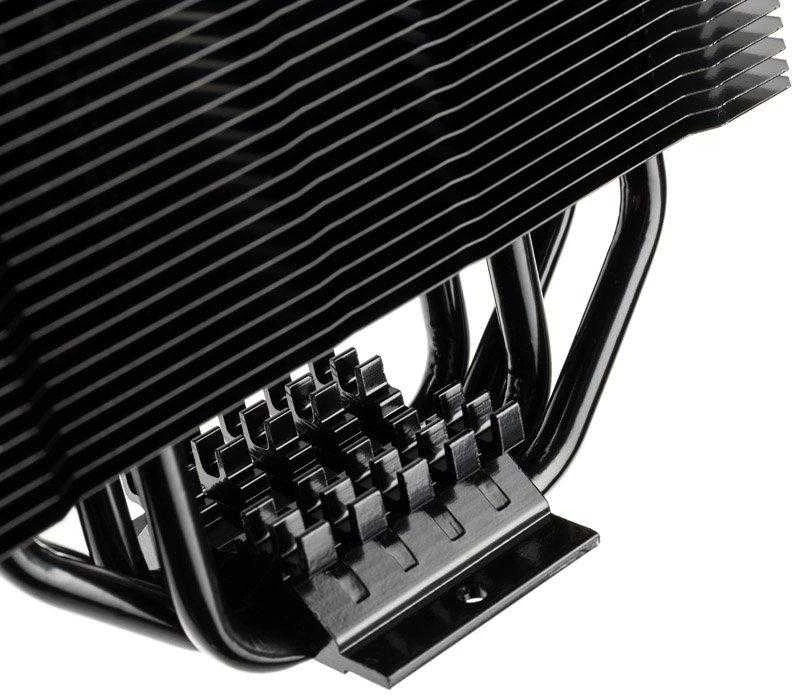

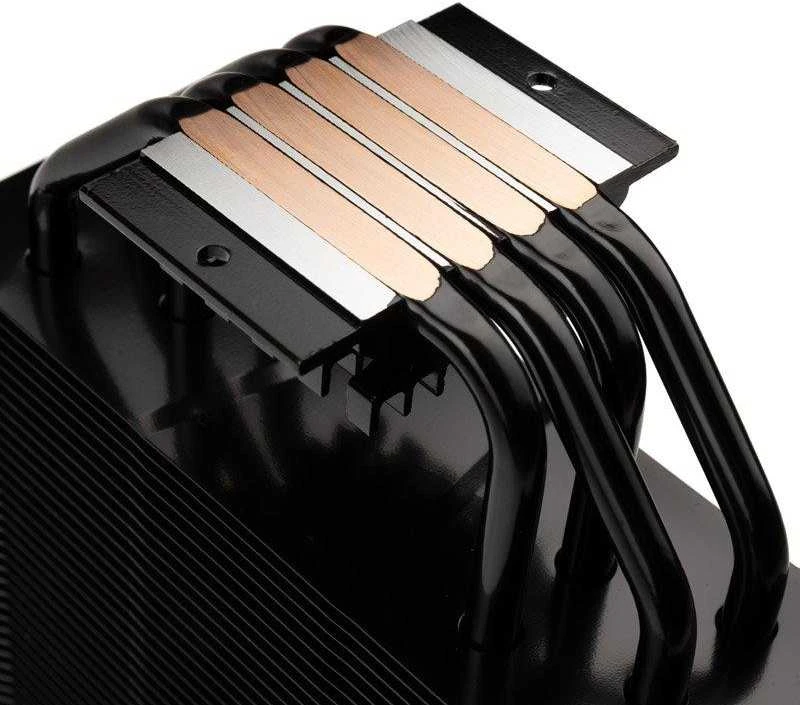

The Umbra EX180 ARGB features four 6 mm heatpipes , which are embedded in the aluminium cooler base. The Umbra EX-180 ARGB comes with a powerful and stylish ARGB PWM fan. Thanks to its high static pressure and remarkable performance, the CPU cooler is capable of handling CPUs with a TDP of up to 180 watts .

Design and Lighting

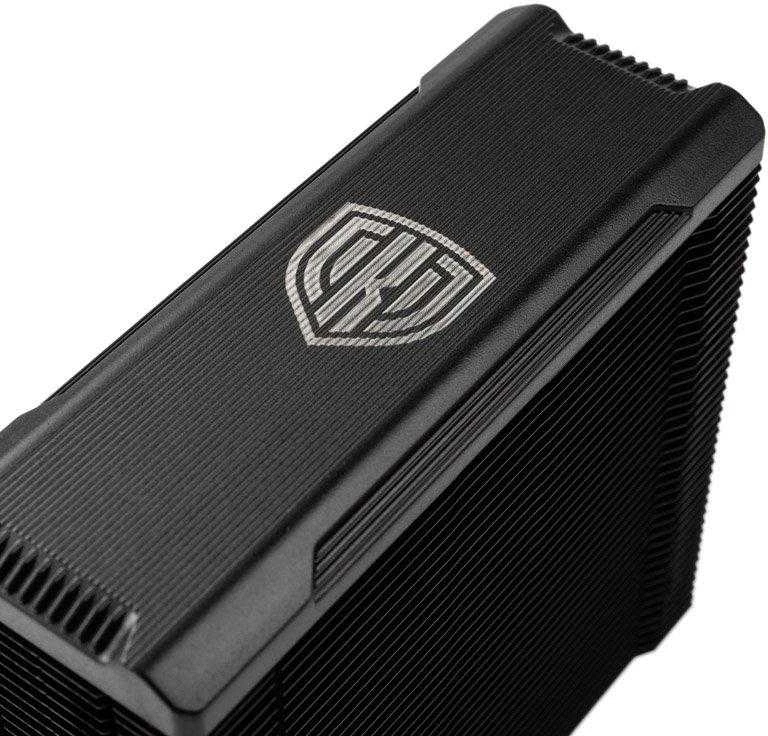

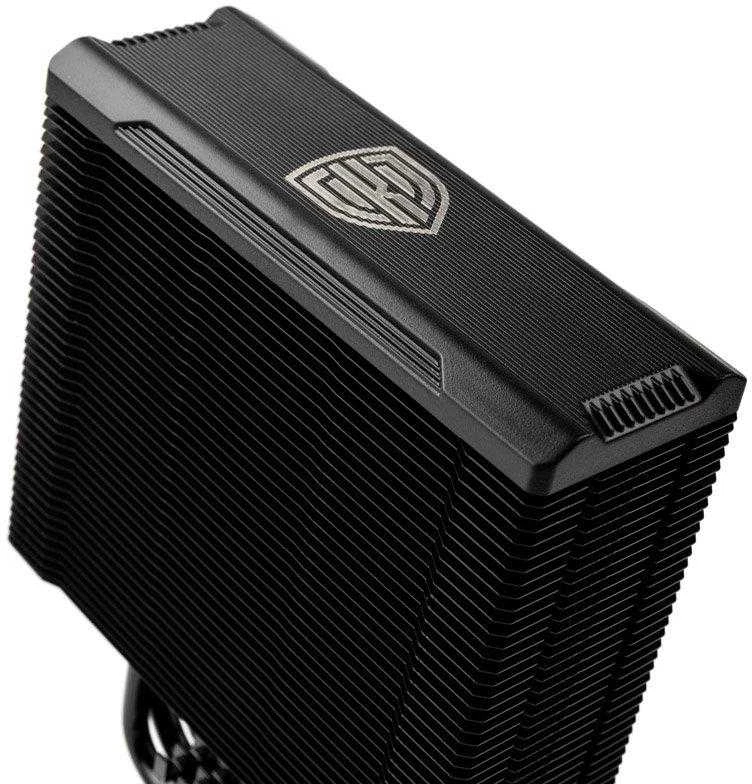

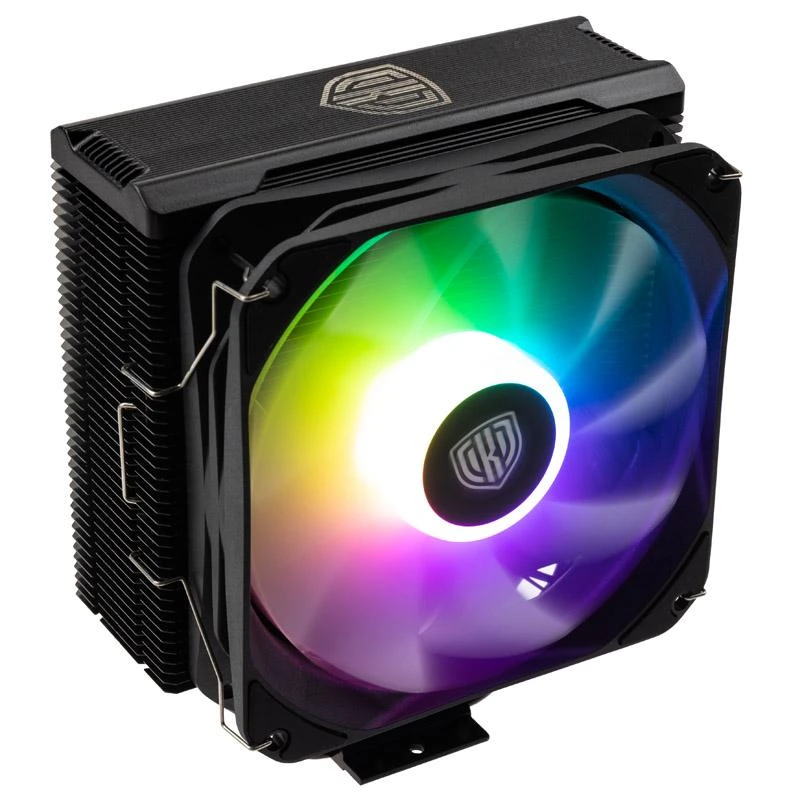

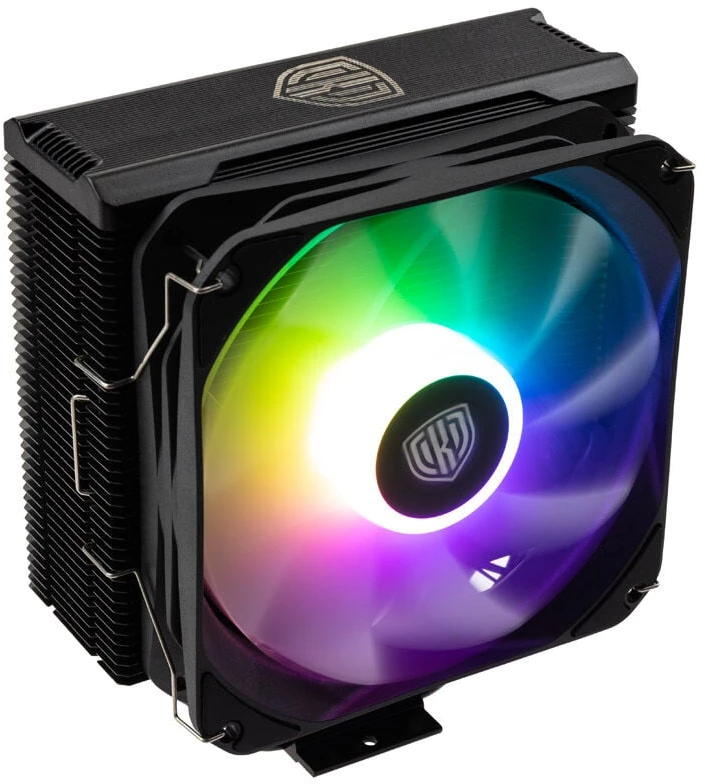

All parts of the cooler have a matte black finish . The aluminium parts of the cooler have undergone a black electrophoresis surface process. This process helps avoid oxidation and corrosion, ensuring durability and an immaculate look. The ARGB PWM 120 mm fan is equipped with digitally addressable RGB LEDs . The manufacturer has integrated the LEDs into the fan hub. These cast their light smoothly on the impeller and are connected to the motherboard or ARGB controllers via a 3-pin ARGB connector.

High Compatibility and Easy to Upgrade

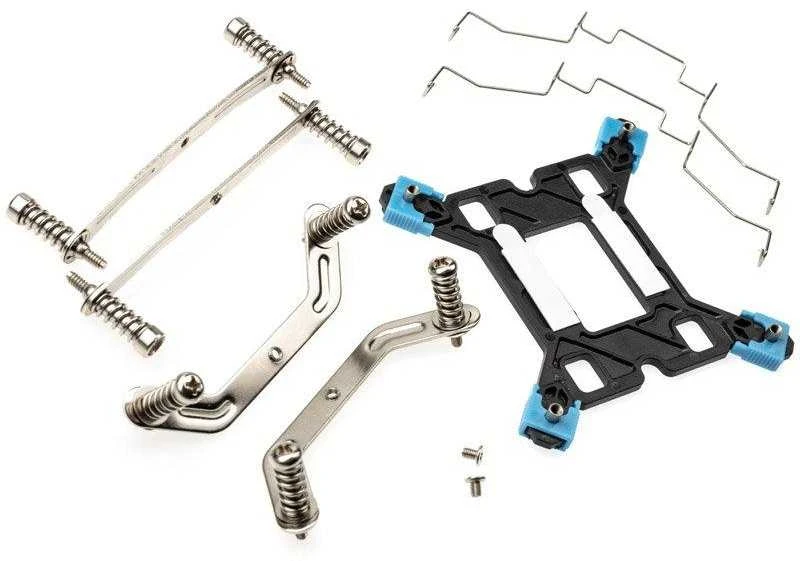

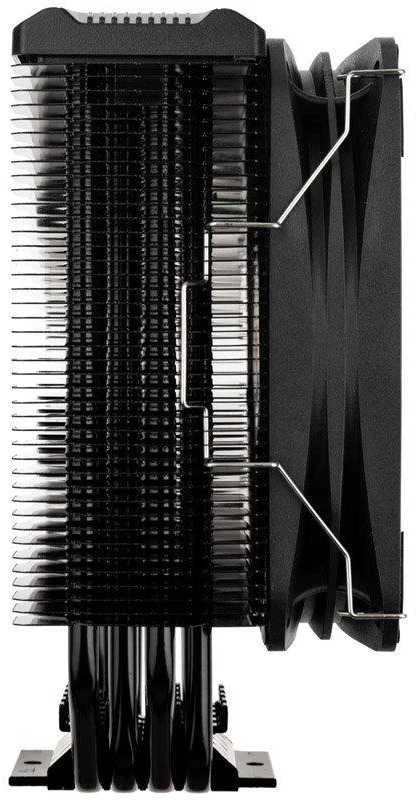

The slim cooler design ensures high compatibility with RAM modules. This enables you to use any RAM module of your choice without being limited in size and shape. Thanks to the versatile mounting system, the Umbra EX180 ARGB is easy to install and guarantees high compatibility with Intel and AMD CPU sockets, including AMD AM5 and Intel 1700. The package contents include the high-end thermal paste with 12.8 W(m-K) conductivity to achieve maximum cooling performance.

Technical Details:

Measurements: 130 x 157 x 75 mm (W x H x D)
Weight: 500 g
Materials: Aluminium (cooler base), copper (heatpipes), aluminium (fins, electrophoresis surface process)
Colour: Black
Heatpipes: 4x Ø 6mm
TDP: 180 W
Fan: Type: 1x 120mm ARGB PWM Measurements: 120 x 25 x 120mm (W x H x D) Noise: max. 28.6 dB(A) Speed: 800 - 1,800 rpm Airflow: 125 m³/h (73.6 CFM) Static pressure: 2.12 mmH2O Voltage range: 7 - 12 V Rated current: 0.38 A Input power: 4.5 W Fan connector: 4-pin PWM RGB connector: 3-pin ARGB
Compatibility: Intel LGA 1700, 1200, 115x, 20xx AMD AM4, AM5

Specification

Colour
Primary Colour	Black
Fan Main Colour (Frame)	Black
Fan Main Colour (Rotor)	White
Dimensions
Length / Depth	130 mm
Width	75 mm
Height	157 mm
Weight	500 g
Cooler Specifications
Additional fans possible	Yes
Heatpipe diameter	6 mm
Number of heatpipes	4
Ventilation type	active
Type
CPU Cooler Type	Single Tower
CPU
CPU Socket	115X, 1200, 1700, 1851, AM4, AM5
Fan Specifications
Min. Fan RPM	800 rpm
Max. Fan RPM	1800 rpm
Max. Single Fan Airflow	125 m³/h
Max. Static Pressure	2.12 mmH2O
Noise
Max. Single Fan Noise	28.6 dB(A)
Internal Ports
Fan connectors	4 Pin (PWM)
RGB / LED connectors	1x Digital RGB (3-Pin 5VDG)
Thermal Specifications
Max. TDP	180 W
Materials
Materials	Aluminium, Copper
Base Plate Material	Aluminium
Heat Sink Material	Aluminium
Lighting
Lighting / RGB	Yes
Lighting Colour	RGB
Product Series
Product Series/Family	Umbra
Additional Contents
Included fans	1x 120 mm
