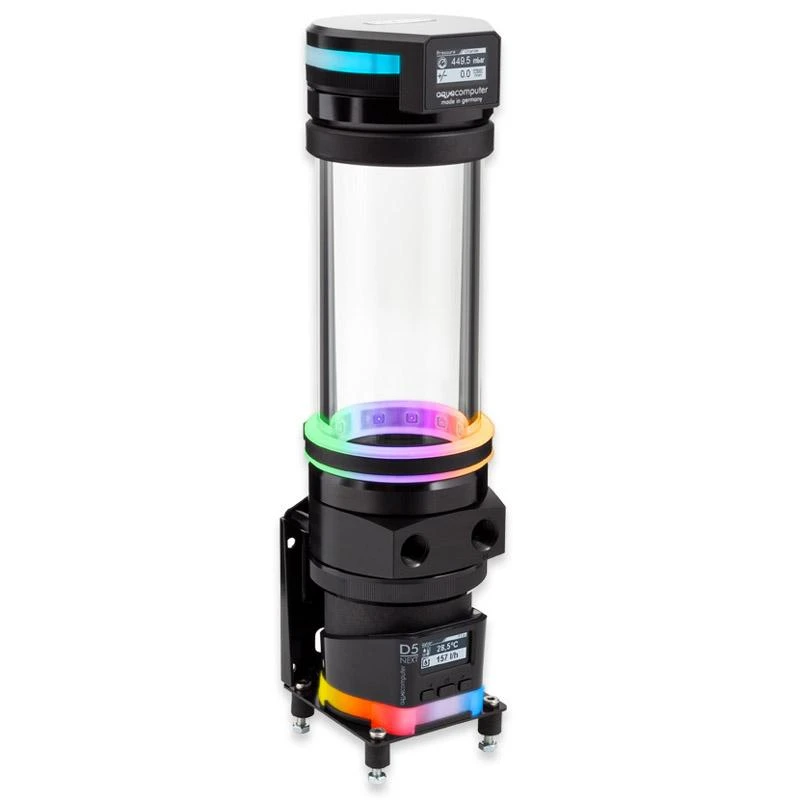

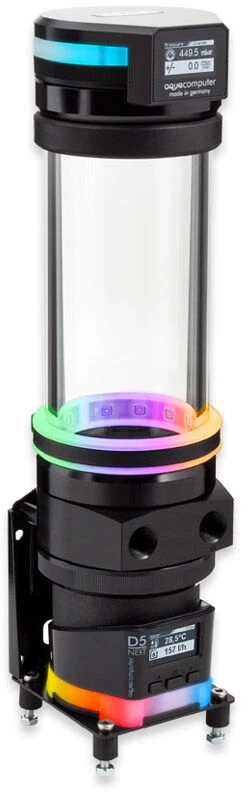

aqua computer ULTITUBE D5 150 PRO LEAKSHIELD Reservoir

• Reservoir from aqua computer with 350 ml capacity
• Made from durable borosilicate glass and acetal
• Removable stainless steel filter in the base
• LEAKSHIELD protects your system from leaks
• A powerful D5-NEXT pump with OLED display powers your water cooling
• RGB-LED lighting through the RGBpx ring

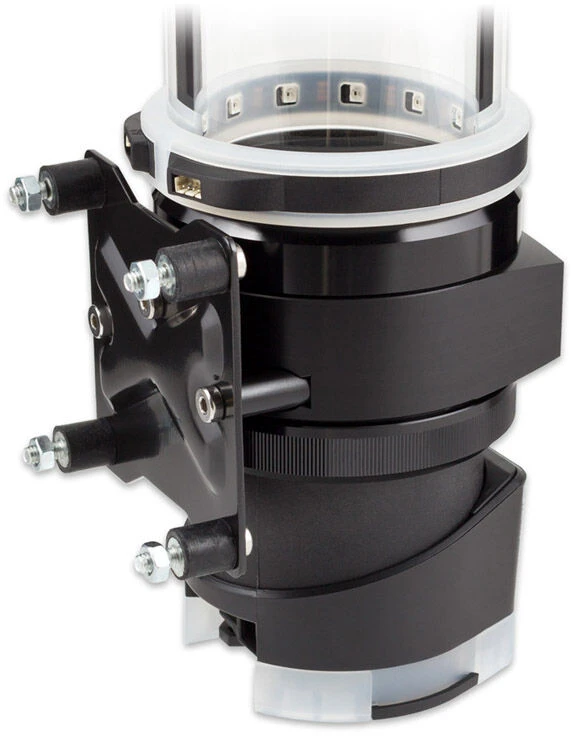

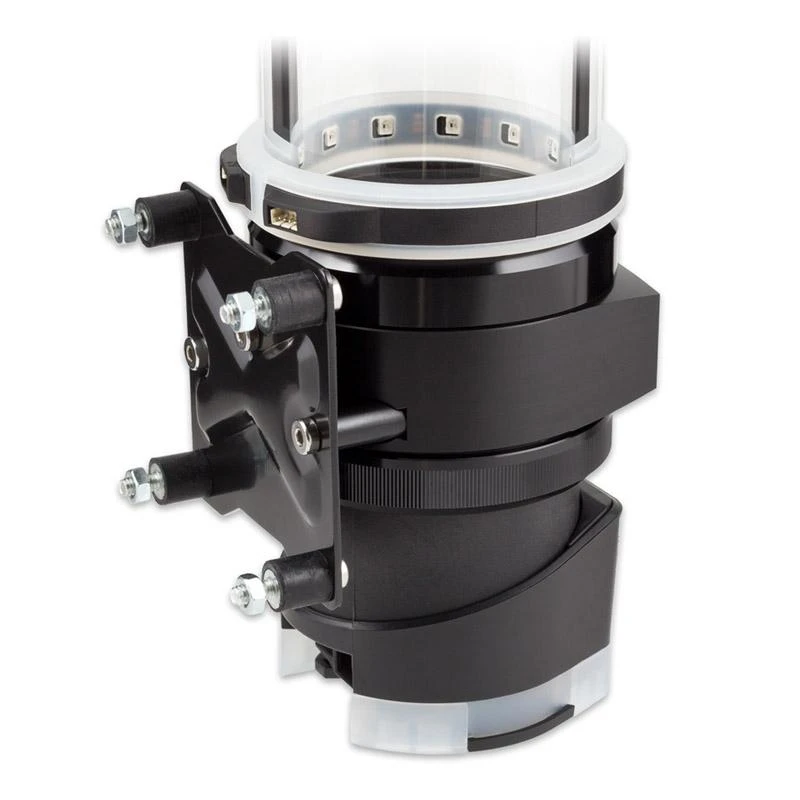

• Mounting hardware for wall and floor installation included

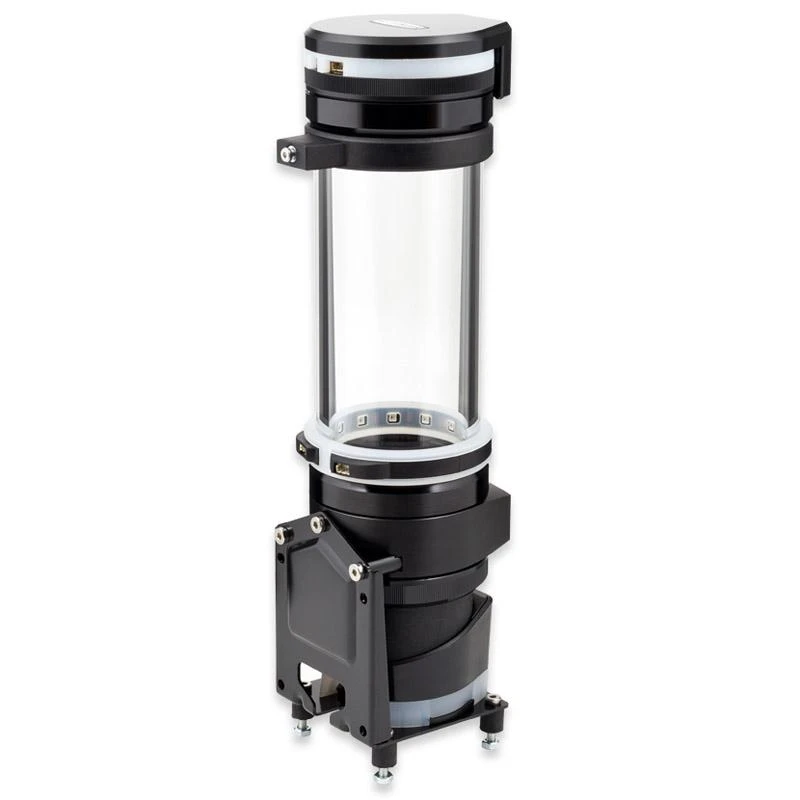

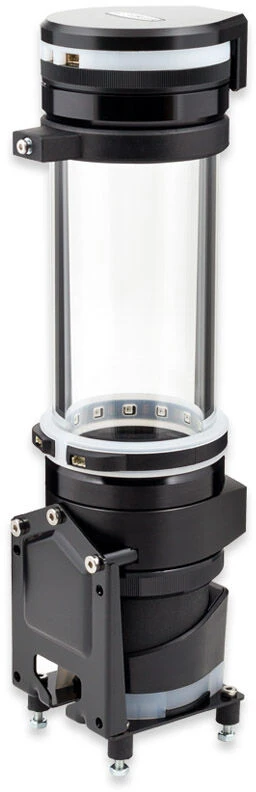

The ULTITUBE D5 150 PRO LEAKSHIELD Reservoir in Detail

A reservoir that protects your system. The  ULTITUBE D5 150 PRO  with  LEAKSHIELD  ensures that  no liquid  from your water cooling system leaks onto your hardware thanks to its negative pressure. It also  continuously monitors  the water loop for minor leaks, even before you start using the water cooling system. The  ULTITUBE D5 150 PRO Reservoir  also supports you with filling your system with water once you connect a suction line or monitor the reservoir’s water level thanks to  LEAKSHIELD .

A powerful pump for sophisticated custom water cooling systems

The  aqua computer ULTITUBE D5 150 PRO LEAKSHIELD  stands out by using  borosilicate glass  instead of acrylic, which is harder and more scratch-resistant. Additionally, it offers excellent  chemical and thermal resistance  and expands very little when exposed to heat. The glass tube has a wall thickness of  5 mm  and an outer diameter of  65 mm . A  filter  made of  stainless steel mesh  is integrated into the base of the reservoir. The filter retains particles and eliminates air bubbles. The filter element is easy to remove and can be cleaned under running water. Both the top and base of the  ULTITUBE D5 150 PRO  are made from durable  acetal  and are screwed together with aluminium rings and the tube. Both ends of the glass tube are securely connected with metal rings made of  black anodised aluminium . They do not come into contact with the coolant! This design eliminates the need for internal struts or additional tubes.

The Function of LEAKSHIELD

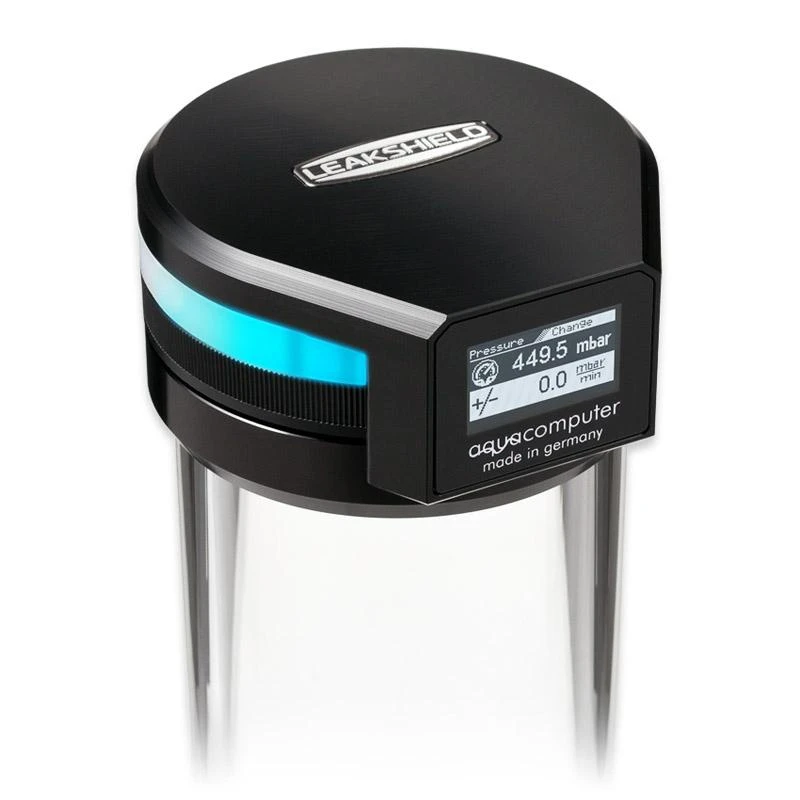

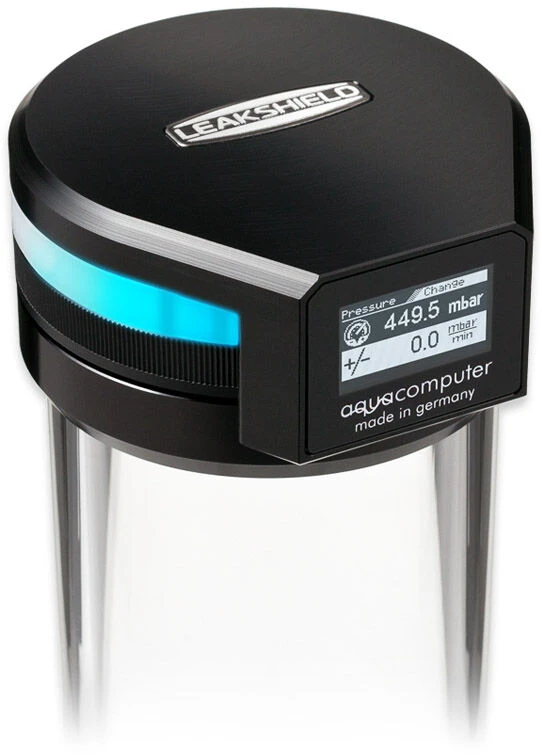

What does  LEAKSHIELD  do? It creates  negative pressure in the entire cooling system . This means that when a leak occurs,  no coolant  escapes. Instead,  air  is  sucked into  the system. To ensure that negative pressure is maintained at every point in the loop, you must adjust the  negative pressure  based on your  coolant pump . If air enters the system, it is pumped out again by the  integrated vacuum pump  of the  LEAKSHIELD , maintaining the negative pressure. Only in the event of large leaks, such as a completely detached hose, might coolant escape.

Powerful performance with the D5-NEXT Pump

A  aqua computer D5 NEXT Pump  is mounted directly at the bottom of the reservoir. The pump features an  OLED display  and  numerous control and adjustment functions . The pump is mounted via an aluminium ring at the bottom of the reservoir.

Customise Your Pump with Colours

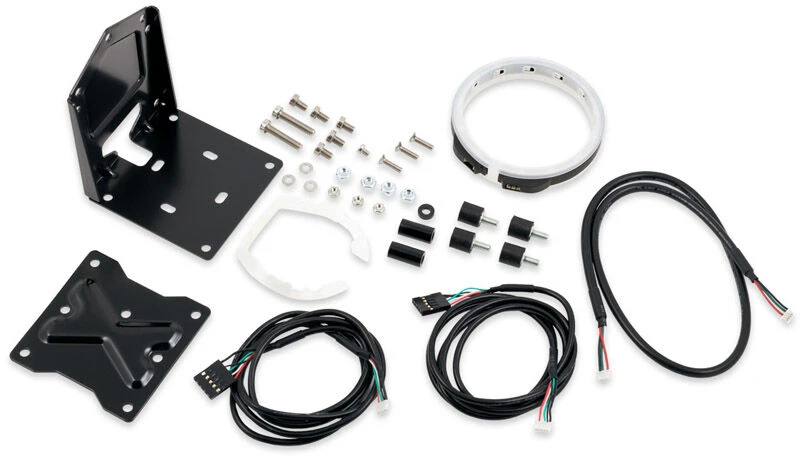

The package includes  digitally addressable RGB-LED lighting  in the form of an LED ring with  13 RGB-LEDs . The RGBpx ring can easily be slipped over the reservoir, illuminating the reservoir and the coolant. The silicone construction diffuses the LED light, minimising unsightly LED spots. The  RGBpx ring  has both an input and output, allowing multiple LED rings to be connected in a chain. Note: The reservoir does not include fittings! They must be purchased separately.
