The HDMI 2.1 Ultra High Speed 8K@60Hz or 4K@120Hz optical cable is used to connect two audio/video devices via a modern HDMI interface, such as an HD-DVD/Blu-ray player and an LCD/Plasma TV. The cable transmits both digital audio and video and supports HDCP digital content protection.
- The optical AOC cable features excellent, lossless signal transmission over long distances, is resistant to electromagnetic interference, and provides the best possible picture quality compared to metallic cables.
- HDMI 2.1 Ultra High Speed active optical fiber cable; supports HDMI 2.1 as well as earlier versions HDMI 2.0 and HDMI 1.4
- Supports Ultra High Definition resolutions: 8K@60Hz, 4K@120Hz, YUV 4:4:4
- Maximum data transfer rate: 48 Gb/s
- Hybrid optical cable with a diameter of 5 mm—4x OM3 optical fibers + 7x conductors
- Gold-plated connectors: HDMI Type A (19-pin) male, HDMI Type A (19-pin) male
- Resolution: 8K UHD (7680p) at 60 Hz, 4K UHD (3840p) at 120 Hz, or lower supported formats: 1080p FULL HD/1080i/720p/720i
- The optical cable is backward compatible with HDMI 2.0a, 2.0, 1.4, and earlier versions
- Supports eARC, ARC, HEC, EDID, DDC
- Supports CEC (Consumer Electronics Control)
- Supports HDR (High Dynamic Range)
- Supports VRR (Variable Refresh Rate) and ALLM (Auto Low Latency Mode)
- Supports 4:4:4 color subsampling
- 3D video via HDMI connection
- Supports HDCP 1.4/HDCP 2.2
- Multi-Dimensional Audio Formats Supported (Dolby Atmos and DTS:X, etc.)
- Dolby TrueHD and DTS-HD Master Audio Bitstream Compatible
- Supports Audio Return Channel (ARC)
- Compatible with HDMI Ethernet Channel (HEC)
- Supports EDID
- Fully powered via the HDMI bus; power consumption less than 250 mW; no external power supply required
- Optical cable thickness: 5 mm
- Optical fiber: OM3 Multimode Fiber Optic
- Gold-plated connectors in metal housings
- Flexible optical cable for a small bend radius: 20 mm
- Color: black

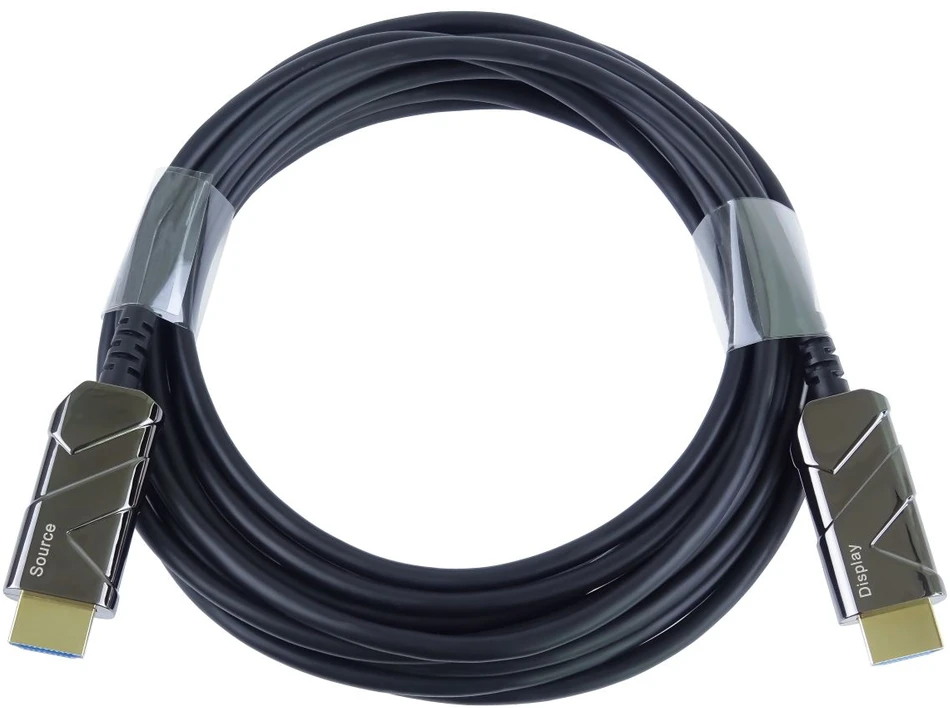

- The optical cable is coiled and labeled with a description and EAN code
- Cable length: 3 m
- Connector dimensions: HxWxD / 10x20x71mm (including grommet)
- Compatible with the Sony PS5 console

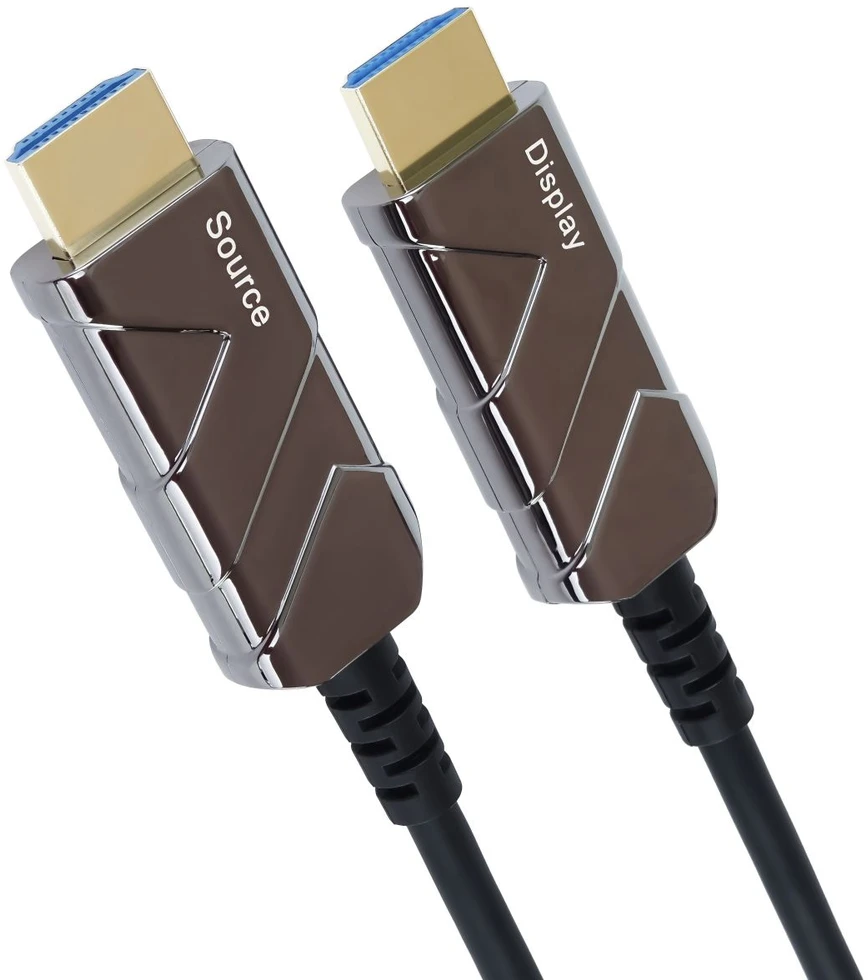

The cable contains active electronics that function in only one direction of the signal. The cable must always be connected while the devices are turned off and only in the direction marked on the cable.

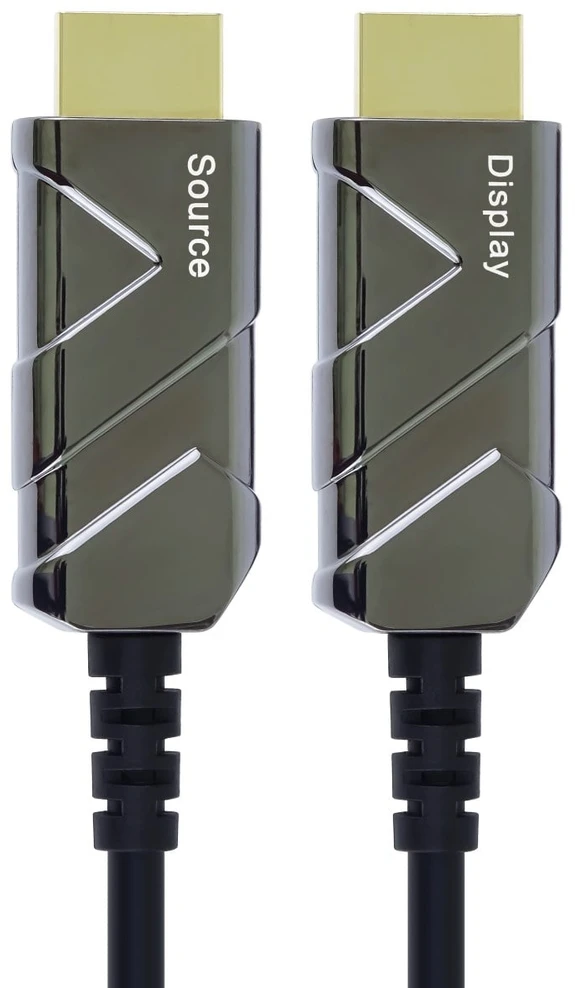

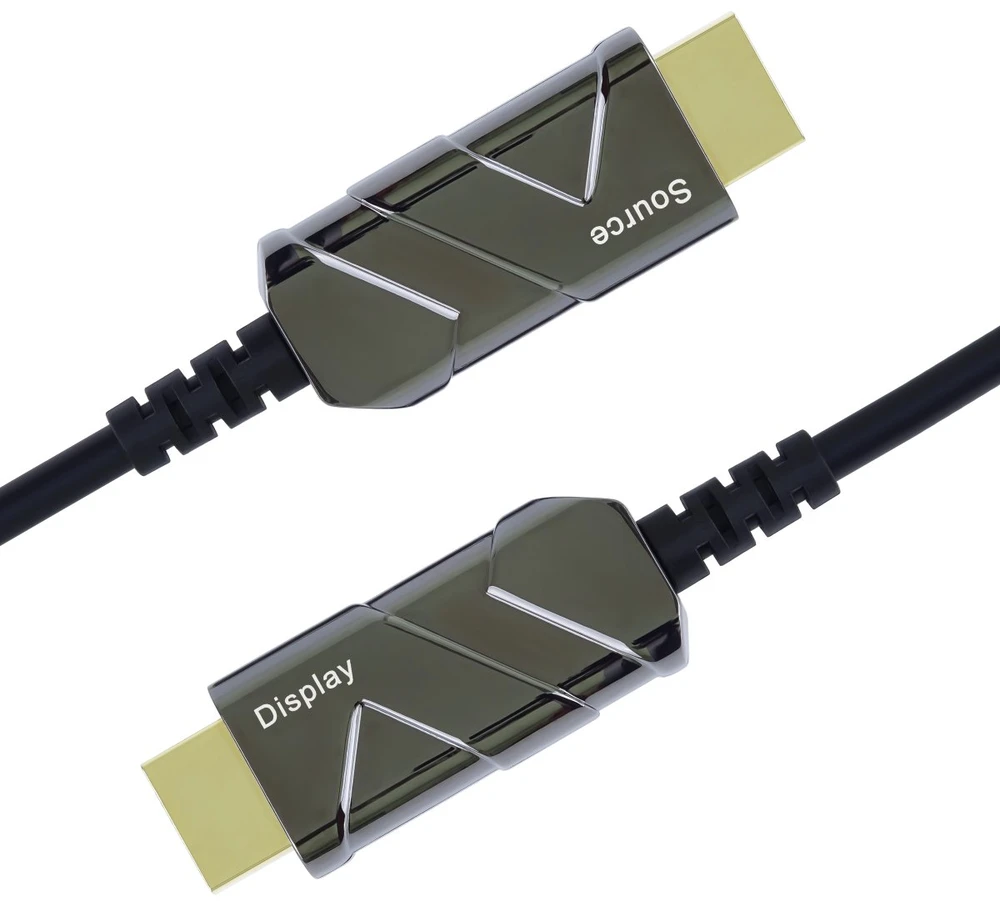

The connector labeled "Source" is always connected to the source device (DVD, Blu-ray).
The connector labeled "Display" is always connected to the display device (LCD, TV, projector).
