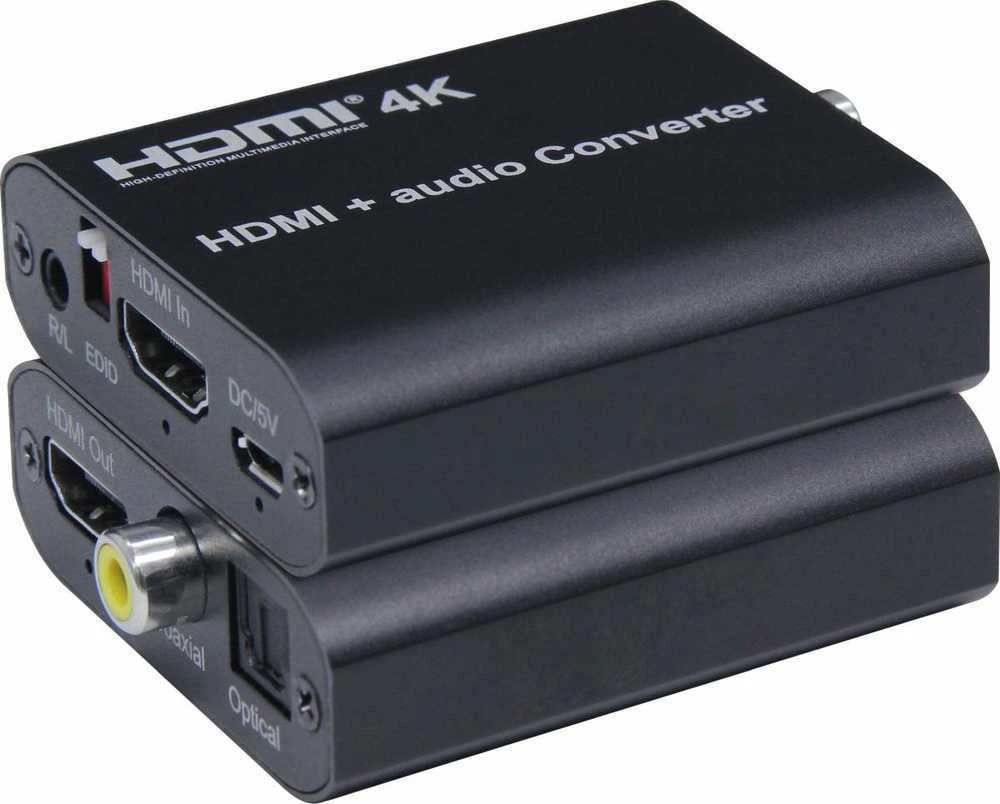

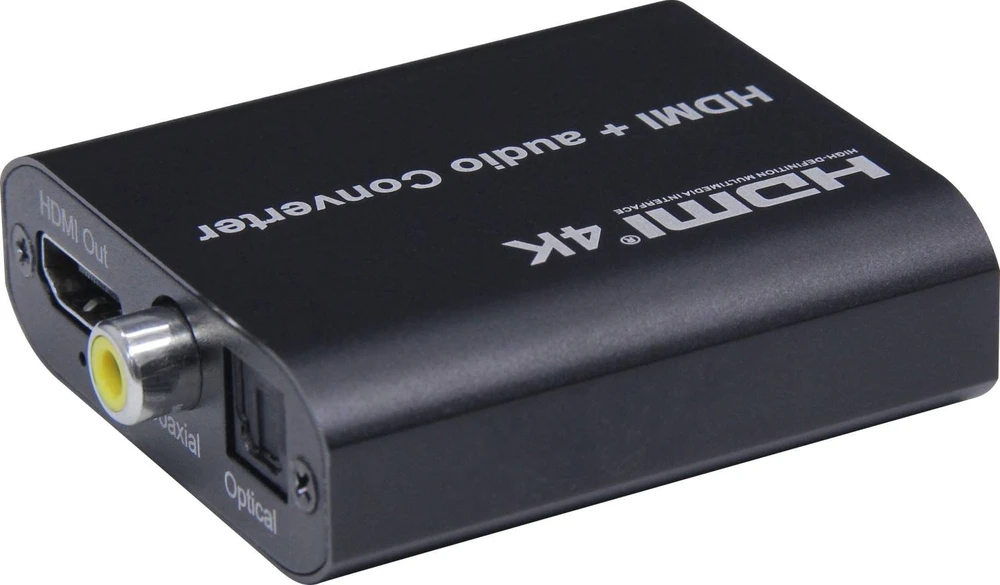

PremiumCord HDMI 4K khcon-55

PremiumCord HDMI 4K Audio extractor with audio to stereo jack separation, SPDIF Toslink, RCA

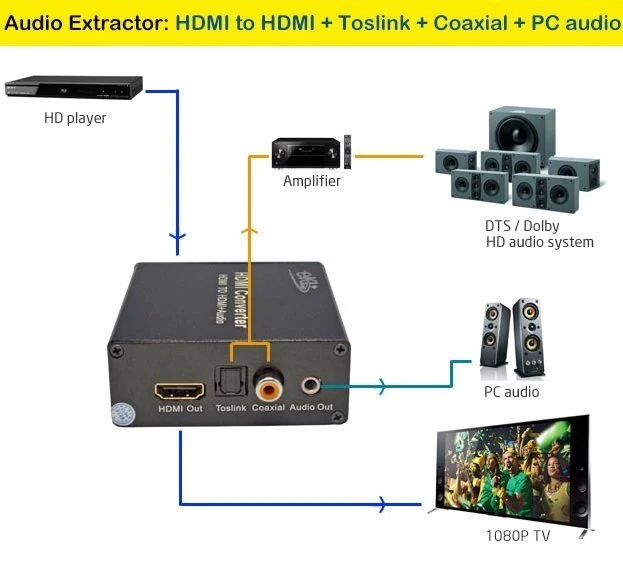

Allows you to separate audio from HDMI input to analog/digital audio that is output separately to the connectors: stereo jack, digital audio RCA CINCH or digital optical TOSLINK
The HDMI Audio Extractor can separate the audio signal from the HDMI signal, allowing you to reproduce the audio through an external speaker, surround system, amplifier or headphones - this way you always output the audio signal to the selected device in optimal quality. The picture is output in brilliant 4K resolution via the HDMI output; you can connect a TV, monitor or project here. Ideal for your home cinema! Audio can be output in stereo format via the 3.5mm jack or in 5.1 channel technology via Toslink™ (SPDIF/optical). The integrated HDMI® signal amplifier also enhances the video signal (Full HD up to 15m, 4K up to 10m).

- Signal splitting from HDMI input to video (HDMI) and audio (analog stereo and digital S/PDIF 5.1).
- Amplifies HDMI input signal up to 15m (1080p) or 10m (4K) when using a quality AWG26 cable
- Amplifies HDMI output signal up to 15m (1080p) or 10m (4K) when using a quality AWG26 cable
- Outputs the HDMI audio signal to the following connectors: stereo jack, Digital Audio RCA CINCH or Digital Optical TOSLINK (SPDIF)
- Supports optical/coaxial digital audio and analog stereo audio
- 5.1CH - Audio signal is only on the S/PDIF output
- Audio formats supported: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
- Only stereo analog signal is on the stereo jack
- Resolution up to 1920x1080 (1080p) Full HD and 4K (4096x2160 at 30Hz)
- 3D video support
- Support for HDMI 1.4 and HDCP 1.4
- Supports CEC ( Consumer Electronics Control )
- DIP switch for EDID management
- LED status indication
- Power from USB port using the included USB cable

Connectors:
Input:
1x HDMI female

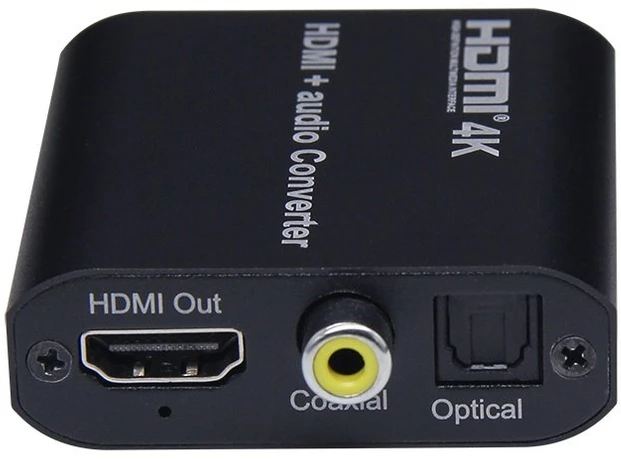

Output:
1x HDMI female
1x Toslink digital optical audio
1x RCA cinch - coaxial digital audio
1x stereo jack - analog stereo audio
