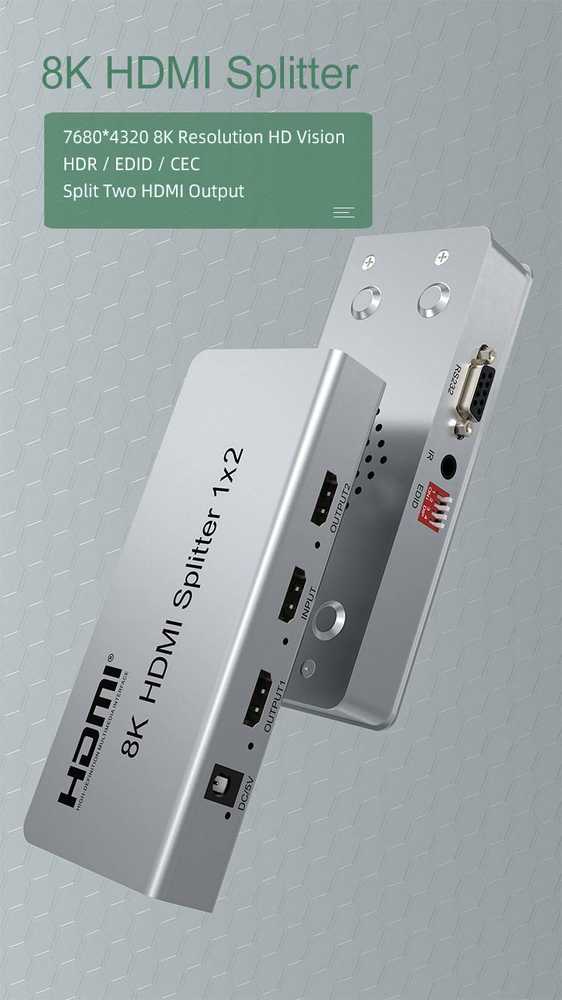

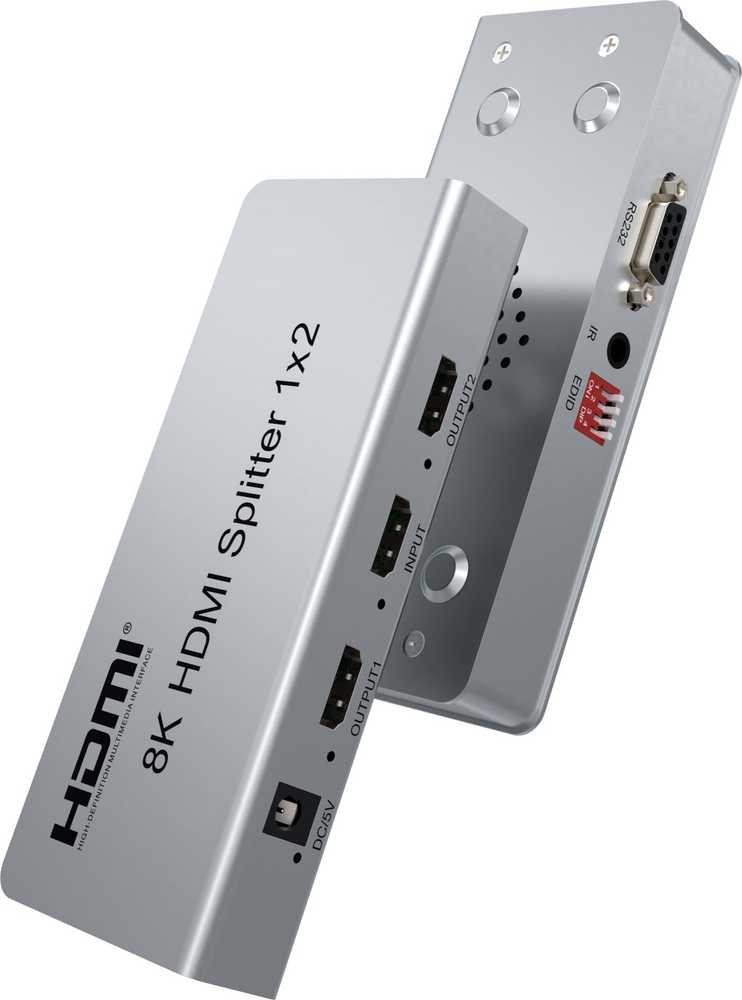

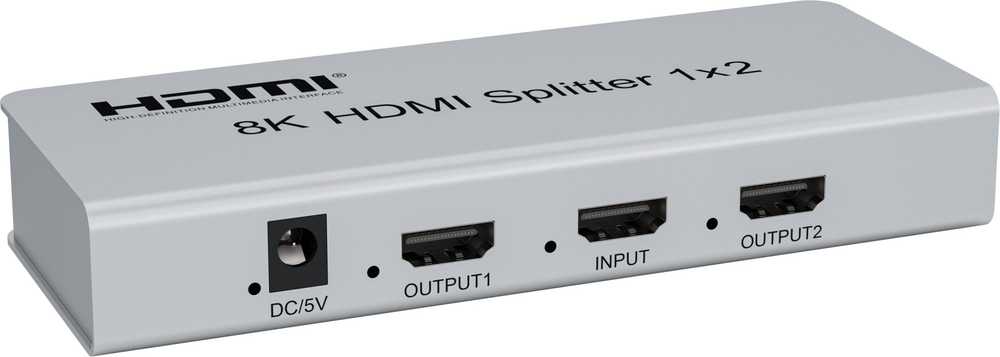

PremiumCord HDMI 2.1 splitter 1-2 ports, 8K@60Hz, 4K@120Hz, 1080p, HDR

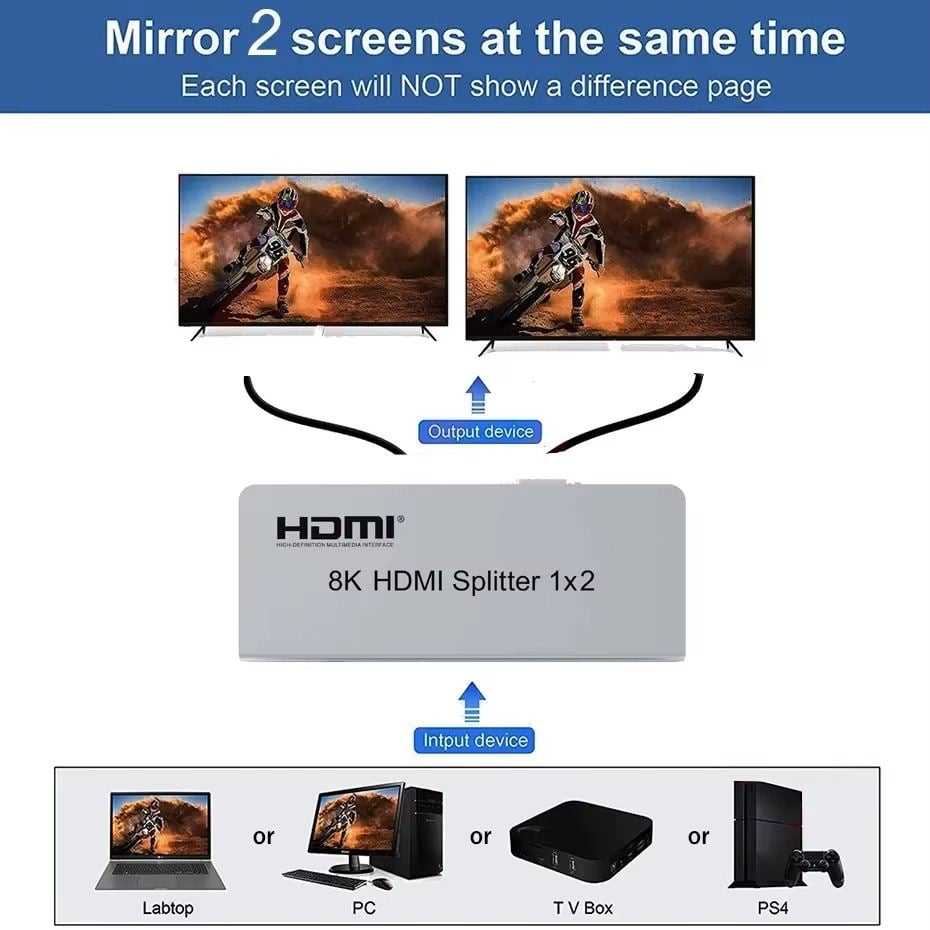

You can connect two HDMI screens to one HDMI signal source such as PC, laptop, DVD, set top box, etc.
The splitter supports HDMI signal resolution up to 8K@60Hz, 4K@120Hz or FULL HD 1080p

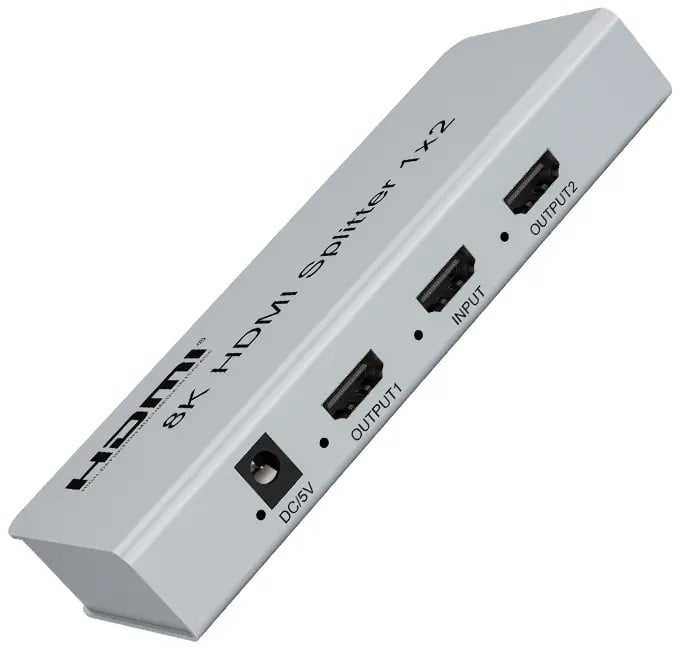

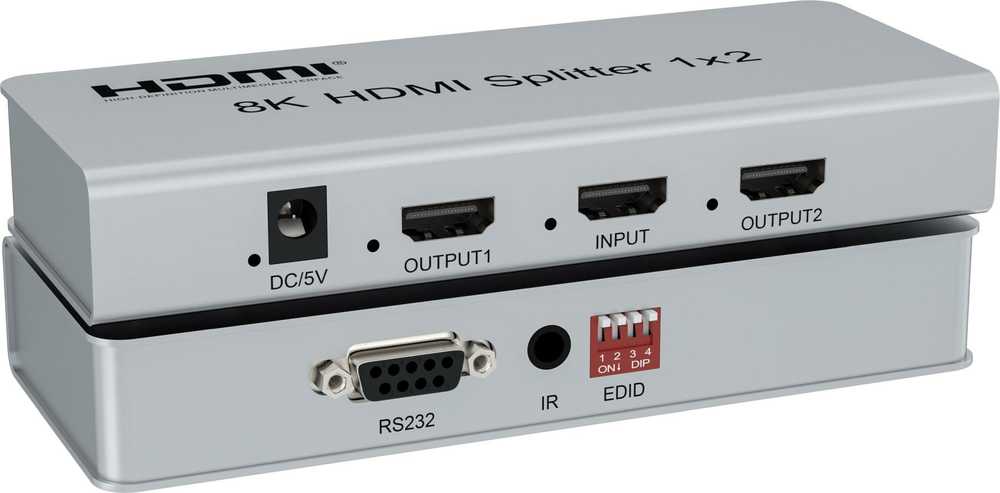

- Input: 1 x HDMI socket (Type A)
- Output: 2 x HDMI socket (Type A)
- Power supply via 230V/5V 2A adapter, maximum power consumption 0.7A
- 1xLED power indication on front panel, 2xLED indication of signals on ports
- Resolution: 8K@60hz, 4K@120Hz, 1080p
- Supports HDMI 2.1, HDMI 2.0 , HDMI1.4
- Supports HDR High Dynamic Range
- Supports CEC (Input 1 only)
- Data rate: 40Gbps
- Dolby Digital/Plus, Dolby TrueHD, DTS-HD Master Audio+, DVD-Audio, SA-CD other supported standards: 3D, HDCP 2.2 ,
- Supports 8/10/12 bit color depth

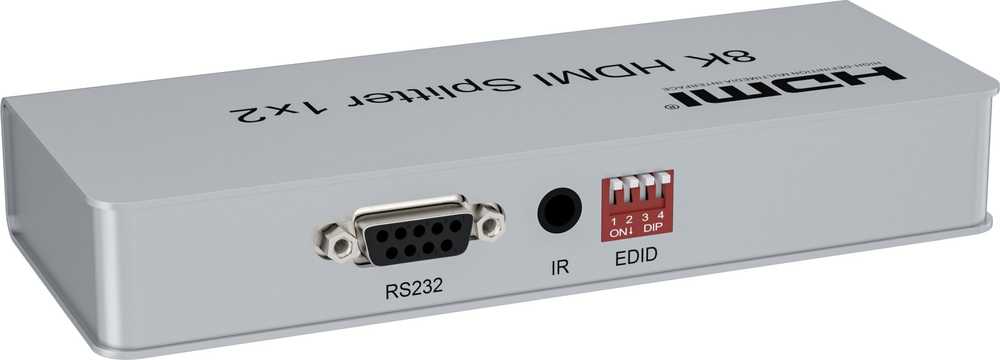

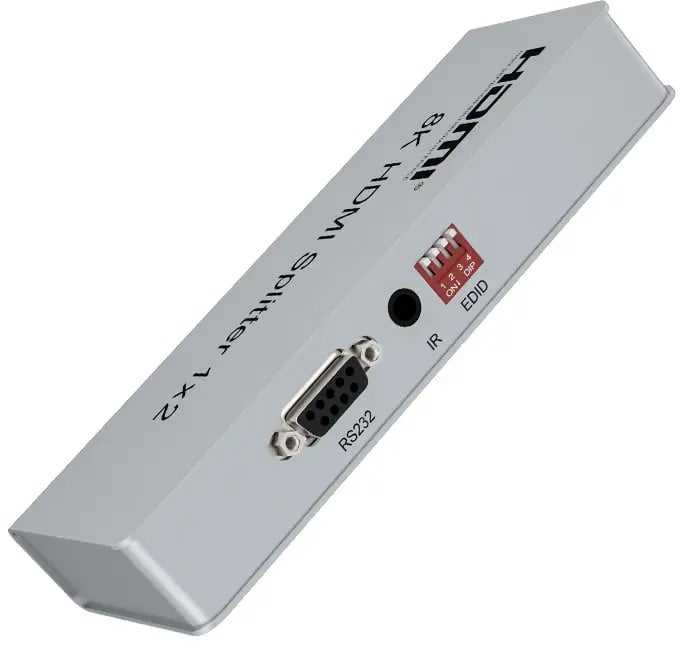

- EDID switch and management allows you to connect different monitors that support 8K or 4K or FULL HD 1080p resolution at the output
- Transmits both video and audio
- Enables IR transmission with HDMI extender
- Nice small metallic silver colored case
- Operating temperature: -15°C - 55°C
- Dimensions: 211mm x 78mm x 27mm
- Weight: 504g

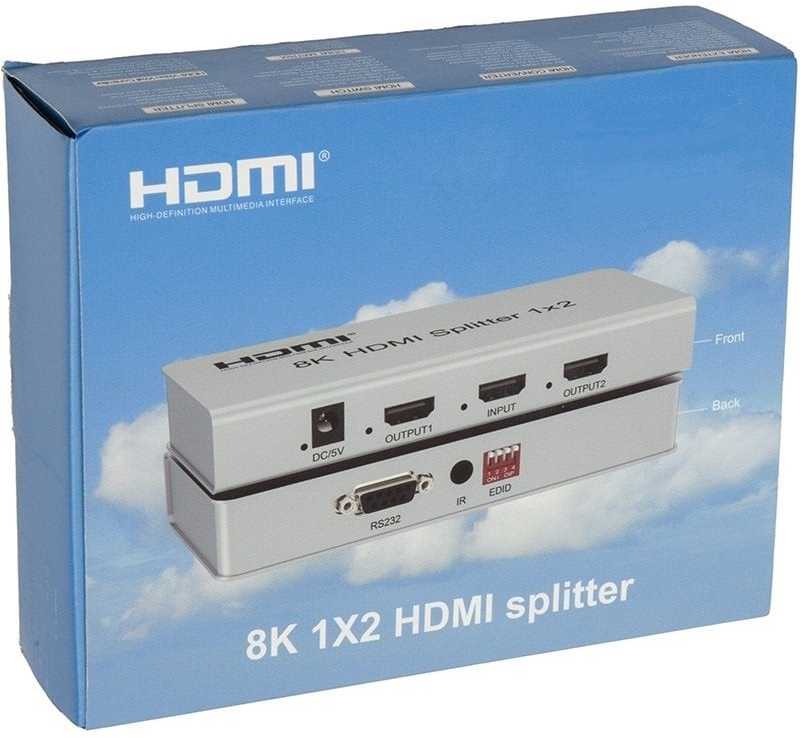

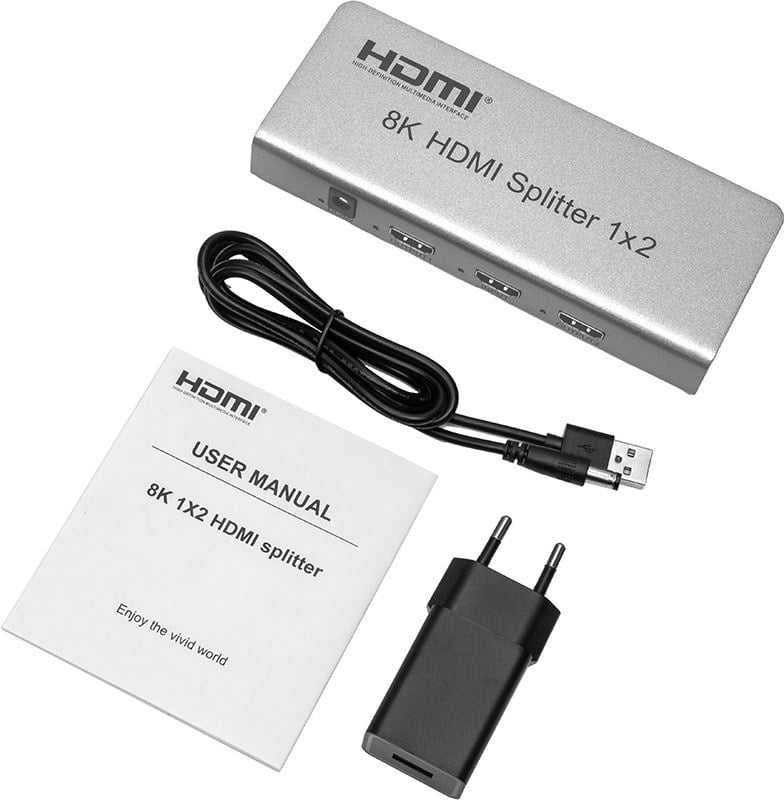

- Packed in a paper box with EAN code

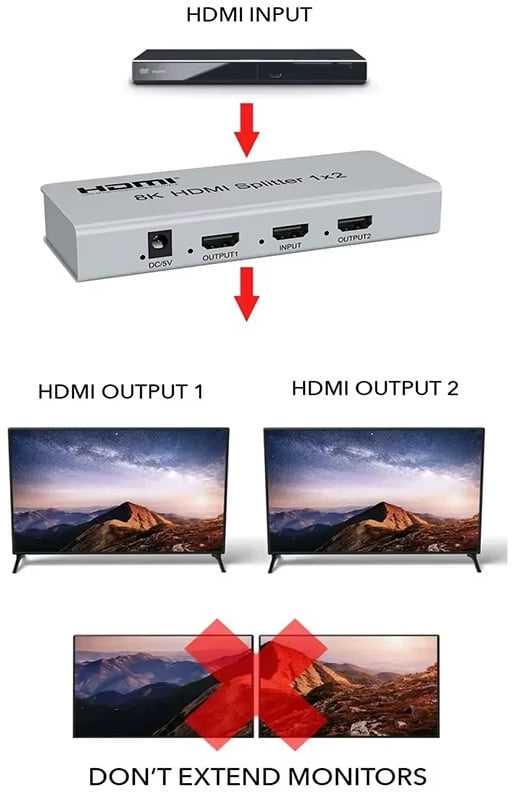

Wiring Instructions:
1) Connect the input of the HDMI splitter with the HDMI cable to the signal source and connect the output to the display unit or monitor.
2) Plug the power adapter into the 230V power outlet and the DC 5V socket.
If the image does not appear immediately after plugging in the splitter, wait about 30s before the HDMI signal is detected.
