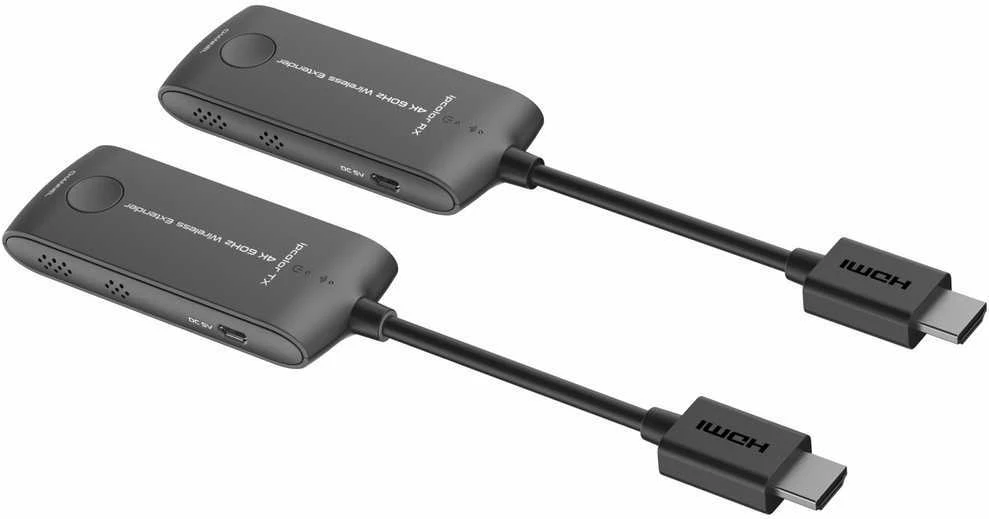

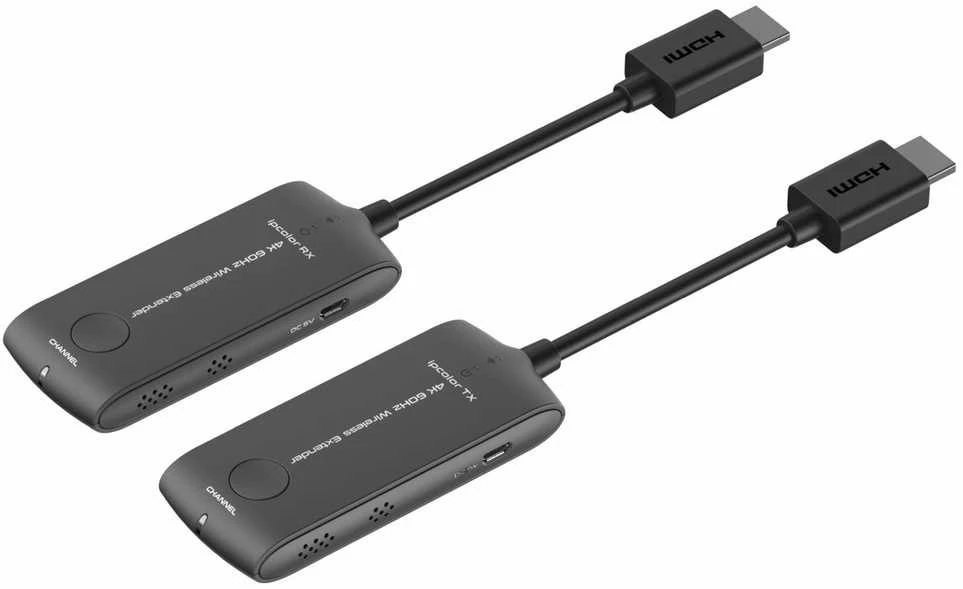

PremiumCord 4K@60Hz HDMI Wireless Extender at 20m

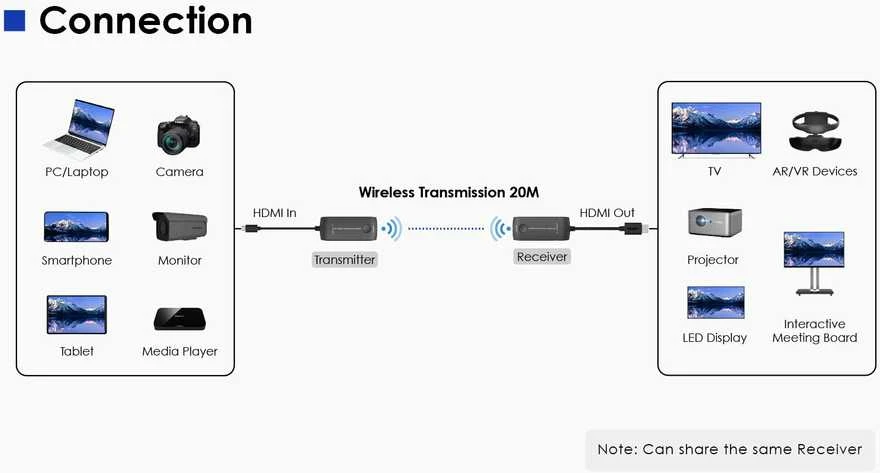

- Wireless HDMI transmitter and receiver for 20m connection
- Supports wireless transmission of 4K@60Hz and Full HD 1080p resolution up to 20m
- Maximum bitrate: 18Gbps
- Wifi Frequency: 5 to 5.8GHz
- Supports video resolution: 4K@60Hz/50Hz/30Hz, 2K@60Hz/50Hz/30Hz, FULL HD 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz
- Supports:3840x2160@24/30/50/60Hz (YUV 4:4:4, YUV 4:2:2 and RGB),1080P@50/60Hz, 720P@50/60Hz, 1920x1200@60Hz
- Supports HDMI2.0
- Fully supports HDCP2.2
- Supports SSID pairing
- Audio format PCM

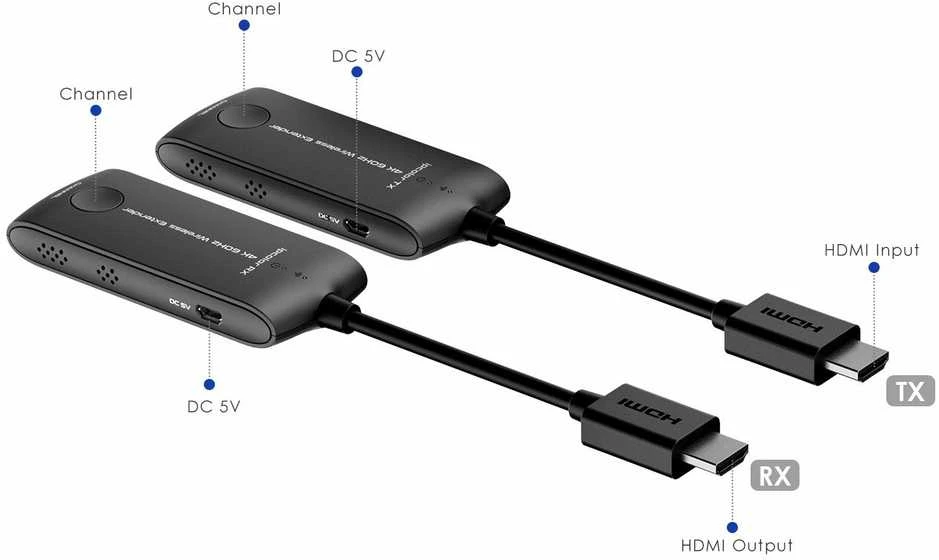

- The transmitter is a small dongl that plugs directly into the HDMI connector of your computer, laptop. The transmitter is powered by a USB cable from the USB port.
- The receiver is a small dongle that plugs directly into the HDMI connector of a monitor or projector. The receiver is powered by a USB cable from the USB port.
- Simple installation without additional software
- Input connectors.
- Output connectors: HDMI fork connector
- Response time less than 150ms
- The extender is powered using the included USB micro cables that plug into a USB port or USB power adapter .The extender can work without external USB power, but in case of video dropouts or worse sound, plug in USB power as the power from the HDMI connector is not sufficient.
- The transmit and receive adapters have a short HDMI cable for easy connection to your computer and display or TV.
- The transmission distance depends on the actual environment.
- Operating temperature: -20°C to 60°C
- Humidity: 0-90% (non-condensing)
- TX and RX dimensions: 40mm x 200mm x 15mm
- Weight TX:40g, RX: 40g
- Black plastic case
It is advisable for the device to ensure optimal conditions for wireless signal transmission:
1, Eliminate signal interference from other wireless devices and remove obstacles that stand in the way of the signal (metal walls , glass, RF interference, etc. in the path of the signal)
2, The signal may also be interfered with by external environmental influences such as microwave oven, wireless mice and keyboards.,
3 Make sure the transmitting unit is at least 20 to 30 cm from the wall and is roughly in line with the receiving antenna of the device on the other side. The extender may not work well in specific locations such as a basement, tunnel, etc.
The set consists of
- 1x Transmitter
- 1x receiver - Receiver
- 2x USB - micro USB cable for power supply to the receiver and transmitter
