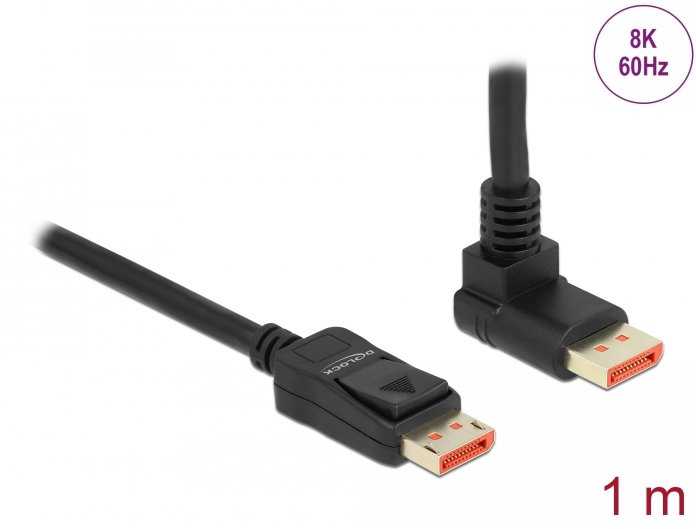

Delock DisplayPort cable male straight to male 90° rectangular up 8K 60 Hz 1 m

This DisplayPort cable from Delock is used to connect DisplayPort devices such as monitors, projectors or televisions to a PC or laptop. Supporting a maximum bandwidth of 32.4 Gbps, content can be displayed in 8K Ultra HD (7680 x 4320 @ 60 Hz) and 5K (5120 x 2880 @ 120 Hz) and 4K Ultra HD (3840 x 2160 @ 240 Hz) resolutions respectively. The high quality triple take cable significantly improves the audio transmission quality with a sampling rate of up to 1536 kHz.

Specifications
Connector:
1 x DisplayPort male >
1 x DisplayPort male rectangular
DisplayPort 1.4 specification
Backward compatible with DisplayPort 1.3, 1.2 and 1.1
Not all 20 pins are connected
Cable cross section: 28 AWG
Cable diameter: approx. 7 mm
Copper conductors
Triple shielded cable
Gold-plated contacts
Audio and video signal transmission
Data transfer rate up to 32.4 Gb/s
Resolution up to:
Display with DSC support:
7680 x 4320 @ 60 Hz
5120 x 2880 @ 120 Hz
3840 x 2160 @ 240 Hz
Display without DSC support:
7680 x 4320 @ 30 Hz
5120 x 2880 @ 60 Hz
3840 x 2160 @ 120 Hz
(depending on system and connected hardware)
Supports Display Stream Compression 1.2 (DSC)
Supports HDR (High Dynamic Range)
Supports HDCP 1.4 and 2.3
Supports HBR3 bit rate (8.1 Gbps)
Up to 32 audio channels for speakers
Audio sampling rates up to 1536 kHz
Supports 4:4:4, 4:2:2 and 4:2:0 color sampling
Color: Black
Length including connectors approx. 1 m


System requirements
- Free DisplayPort interface


Package Contents
- DisplayPort cable

Package
- Box
