Each person’s fingerprint is unique, just like DNA, you can use fingerprint to replace your key, or lock your computer with fingerprint. Adding fingerprint to your project makes it awesome, UART Fingerprint Reader is the new product we want to introduce you!

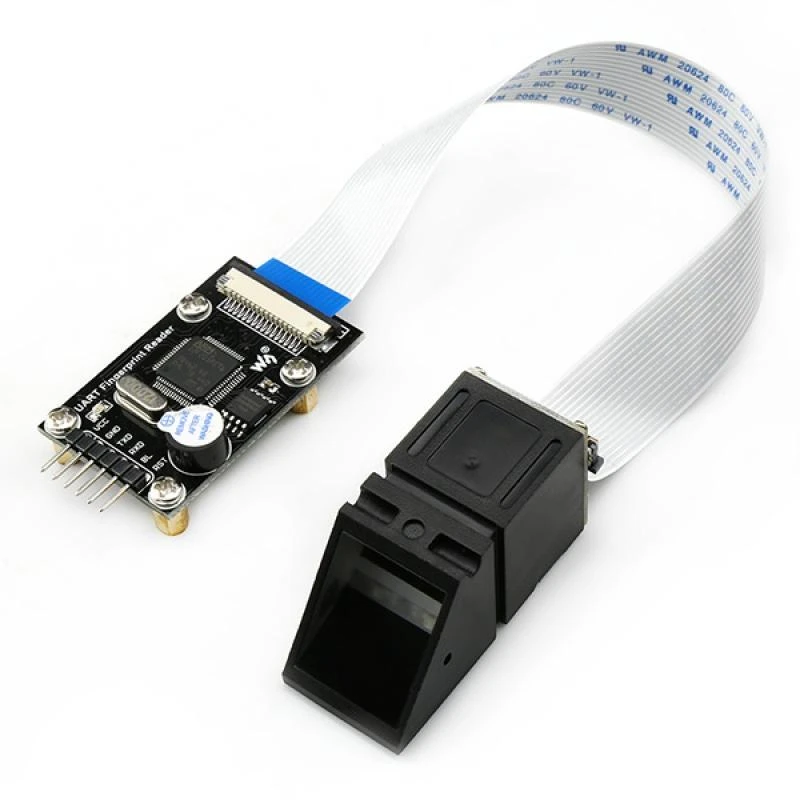

UART Fingerprint Reader is a fingerprinting module which integrated STM32F205 as its processor, less power consumption, stable and powerful! It is an intelligent module that provides many functions like fingerprint recording, image processing, eigenvalue extraction, fingerprint matching and searching, etc.
If you want to communicate with PC, CP2102 USB-TTL module is a good choice.

Note: Just put finger on the window sightly when register your fingerprint, don’t press the window hardly.
Note: The on-board mini USB port only used to update module’s firmware, don’t use this port to power module when module is in working mode!

Specifications:

CPU: STM32F205
Power supply: 3.3V~7.5V
Fingerprint capacity: 1000
False acceptance rate: <0.001% (on security level 5)
False rejection rate: <0.1% (on security level 5)
Input time: <0.5 seconds
Matching time: <0.5 seconds
Matching mode: 1 : 1 or 1 : N
Security level: 1~10 (customizable)
Output mode: user ID, image, eigenvalue
Communication interface: UART
Baud rate: 9600~57600bps (default is 19200)
Operating temperature: -20℃~ +60℃
Relative humidity: 40%RH~80%RH (without condensation)

Features:

High sensitivity, high speed
Divided structure: fingerprint sensor + processing circuit + algorithm platform
Simple UART protocol, support any MCU with UART, easy to use
Capable of 1 : 1 verification and 1 : N identification
Open protocol

Appications:

Person identification
Fingerprint lock
Access control
Employee attendance
Authority management
