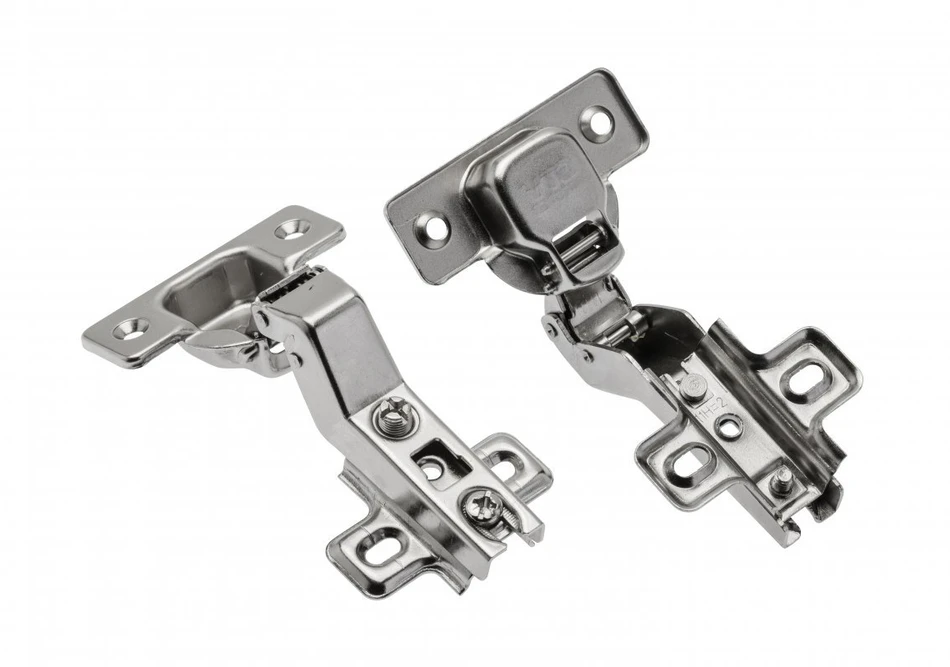

Hinge GTV 30o + base H=2 without euro

The hinge uses a closing mechanism in the form of a pulling spring and a slide-on chain. Thanks to the two-stage operation of the hinge, there is a sterile movement in the last phase of opening. This protects against the front hitting an adjacent wall or piece of furniture. The hinge can be adjusted in three planes, which makes it easy to install. The product complies with the PN-EN 15570:2010 / EN 15570:2008 standard.

• hinge designed to mount the front relative to the side of the body at an angle of 30°.

• closing mechanism: pulling spring;

• two-stage operation ensures sterile movement in the last phase of opening, protecting against the impact of the front, e.g. against an adjacent wall;

• slide-on chain;

• adjustment in three planes;

• the product complies with the PN-EN 15570:2010 / EN 15570:2008 standard;

• easy installation thanks to the universal drilling template ZM-TEMPLATE-ZAW.
