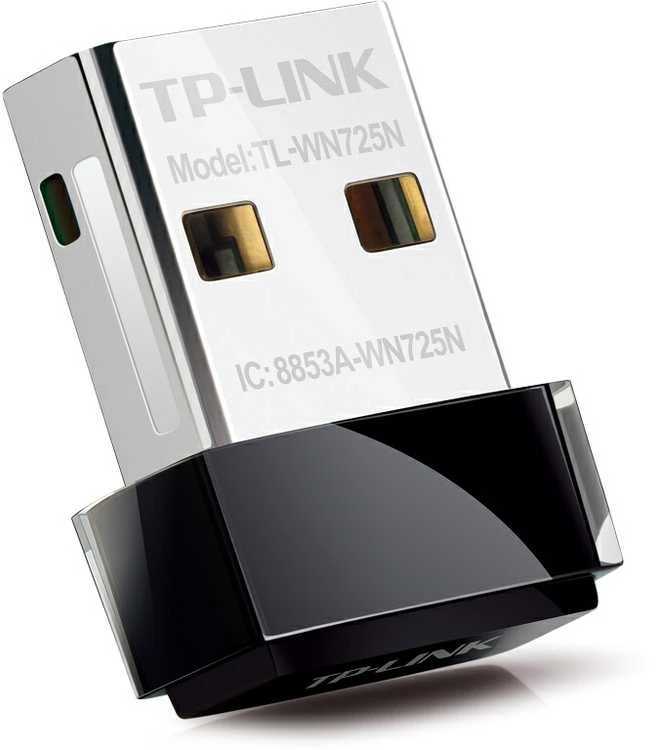

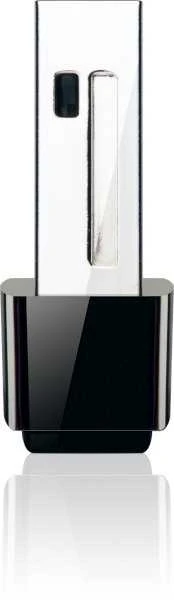

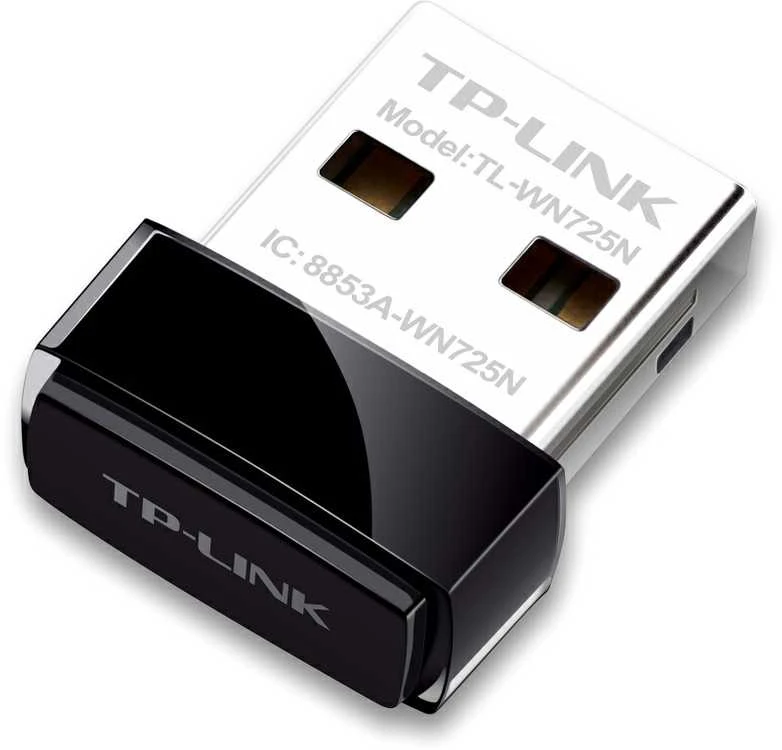

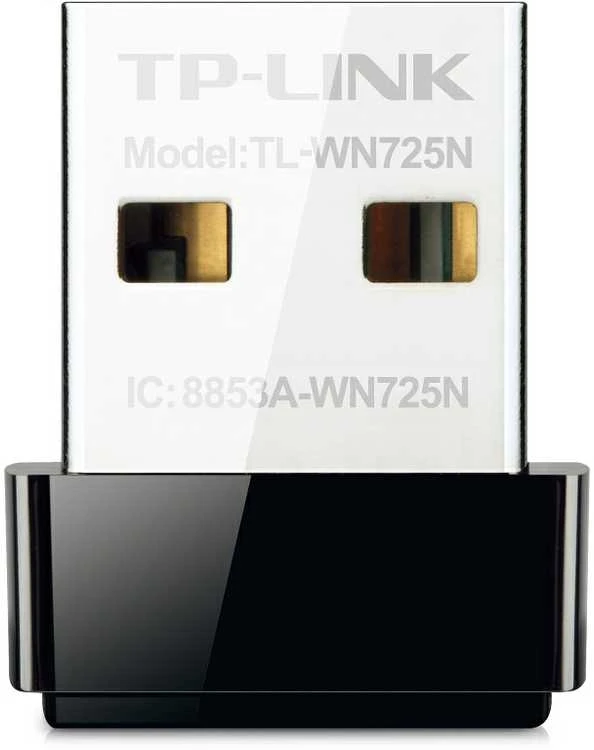

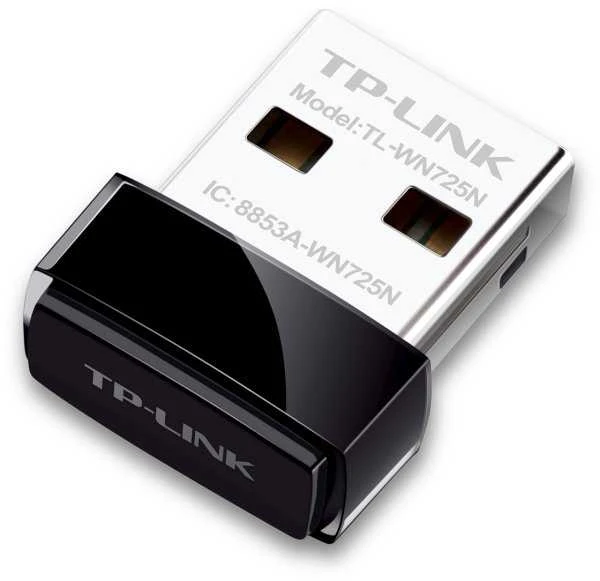

TP-LINK TL-WN725N

The TP-Link TL-WN725N is a miniature client adapter designed for connection via USB interface, especially for use in laptops and other compact computers. It works with the 2.4 GHz band, specifically according to the newer IEEE 802.11 b/g/n standards. The card supports data rates up to 150 Mbit/s depending on signal strength and supports Ad-Hoc and Infrastructure modes. An integrated omnidirectional antenna is included and the maximum output power of the device is 20 dBm. This makes the card suitable for universal use. The security protocols include WEP with 64 or 128 bits, the more modern and secure WPA or WPA2 including PSK and AES and TKIP encryption. Parameter table: ------------------ HARDWARE FEATURES Interface: USB 2.0 LED: Status Dimensions (W X D X H): 0.73x0.59x0.28in.(18.6x15x7.1mm) Weight: 0.07 ounces / 2.1 grams (Without packaging) Antenna: Internal antenna WIRELESS FEATURES Wireless Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Frequency: 2.400-2.4835GHz Signal Rate: 11b: Up to 11Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11n: Up to 150Mbps (dynamic) EIRP: <20dBm Reception Sensitivity: 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER Wireless Modes: Ad-Hoc / Infrastructure mode Wireless Security: Supports 64/128 WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES), supports IEEE 802.1X Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM OTHERS Certification: CE, FCC, IC, RoHS Package Contents: 150Mbps wireless N Nano USB adapter TL-WN725N, Resource CD, Quick Installation Guide System Requirements: Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits) Environment: Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
