TP-Link Archer TBE553E BE9300 WiFi7 PCIe Adapteris

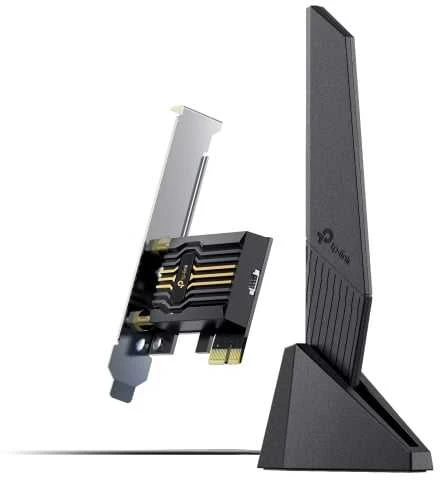

TP-Link Archer TBE553E - Wi-Fi 7 PCIe Adapter

This adapter offers unrivalled tri-band speeds of up to 5764 Mbps (6 GHz), 2882 Mbps (5 GHz) and 688 Mbps (2.4 GHz) thanks to the Wi-Fi 7 standard.
The Intel® chipset ensures lower latency and reliable connectivity.
Two omnidirectional antennas with magnetic base provide wider signal coverage.

Key benefits
Wi-Fi 7 standard - cleaner and wider 6 GHz bandwidth
Lower latency and higher reliability with Intel® Wi-Fi 7 chipset
Wider signal coverage with two high-gain tri-band antennas
Bluetooth 5.4 - improved security and reliability
WPA3 security - advanced password protection
Backward compatibility with 802.11be/ax/ac/a/b/g/n standards

Hardware
Dimensions (W×D×H): 78.5 × 120.8 × 21.5 mm
Antennas: 2× High-Gain Tri-Band Antennas with Magnetic Base

Wireless Specifications

Standards: IEEE 802.11a/b/g/n/ac/ax/be
WLAN Speeds:
6 GHz: up to 5764 Mbps (11be), up to 2402 Mbps (11ax)
5 GHz: up to 2882 Mbps (11be), up to 2402 Mbps (11ax), up to 1732 Mbps (11ac)
2.4 GHz: up to 688 Mbps (11be), up to 574 Mbps (11ax), up to 300 Mbps (11n)

Receive sensitivity:
6 GHz: 11ax HE20 MCS0: -94 dBm, 11be EHT320 MCS13: -44 dBm
5 GHz: 11ac VHT20 MCS0: -94 dBm, 11be EHT160 MCS13: -48 dBm
2,4 GHz: 11n HT20 MCS0: -95 dBm, 11be EHT40 MCS13: -56 dBm

Transmit power:
6 GHz: 12 dBm (FCC)
5 GHz: 20 dBm (FCC) / 15 dBm (CE)
2.4 GHz: 20 dBm (FCC) / 16 dBm (CE)

Mode: Infrastructure mode
Security: WEP, WPA/WPA2/WPA3 (Personal/Enterprise), WPA-PSK/WPA2-PSK

Package Contents
Archer TBE553E PCIe Adapter
Magnetic antenna with 0.8 m RF cable
Low-profile bracket
Bluetooth header cable
Quick Installation Guide and Tools CD

System requirements
Windows 10 or 11 (64-bit)
For MLO support: Windows 11 (version 24b or later)

Operating Environment
Operating temperature: 0°C ~ 40°C
Operating Humidity: 10% ~ 90% (non-condensing)
Storage Humidity: 5% ~ 90% (non-condensing)

Accessories
Extension Cable Length: 0.8 m
Bluetooth Header Cable Length: 0.3 m

Certification
FCC, CE, RoHS

Manufacturer's website link: https://www.tp-link.com/cz/home-networking/pci-adapter/archer-tbe553e
