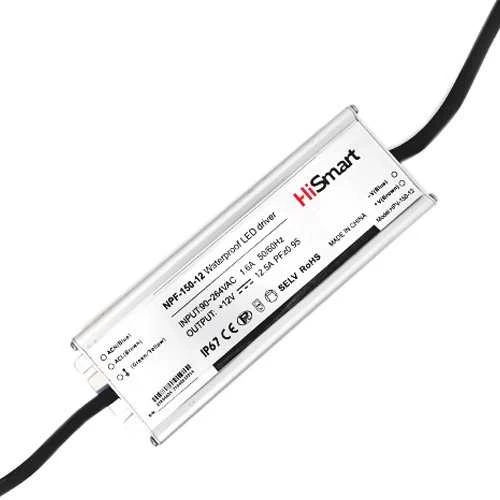

Extra Digital Power Adapteris NPF-150-12 12V / 12.5A / 150W

Power supply 12V, 12.5A, 150W, PFC, IP67.

Features

Built-in power factor correction PFC.

Cooling by free air convection.

Protections: short circuit / overload / over voltage / over temperature.

IP67 design for indoor or outdoor installations.

Specifications

Type: switching power supply.

Input range AC: 90-264V. Frequency 47-63Hz.

Output voltage DC: 12V.

Rated current: 12.5A.

Rated power: 150W.

AC current: 1.7A/115V, 0.75A/230V.

Ripple and noise: 150mV p-p.

Efficiency: 90%.

Leakage current: <0.75mA/240V AC.

Working temperature: -30°C~+60°C.

Working humidity: 20%-90%RH.

Dimension: 231x69x39mm.

Weight: 1.1kg.
