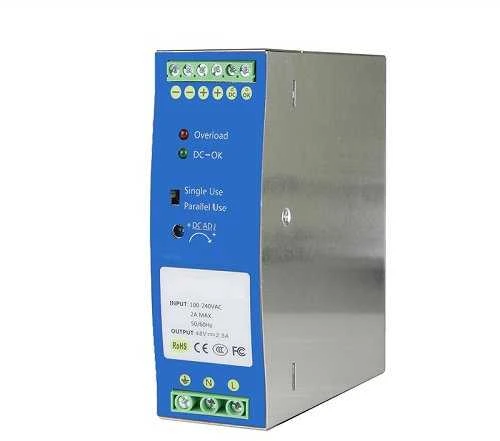

Extra Digital Power Adapteris DR-120-48 48V / 120W

Power supply 48V, 2.5A, 120W, DIN.

Features

Economical slim 60W DIN Rail industrial power supply. Can be installed on DIN rails: TS-35/7.5 or TS-35/15.

Cooling by free air convection. Operation at the ambient temperature between -30°C to 70°C.

Protections: short circuit / overload / over voltage.

High efficiency, durability, reliability, narrow profile.

Meets the EU standards EMC for harmonic current emissions EN61000-3-2.

Specifications

Input range AC: 90-264V. Frequency 47-63Hz.

Output voltage DC: 48V.

DC voltage adjustable range: 47 ~ 56V.

Rated current: 2.5A.

Rated power: 120W.

AC current: 2.2A/115V, 1.1A/230V.

Ripple and noise: 100mV p-p.

Efficiency: >91%.

Leakage current: <0.25mA / 264V AC.

Operating temperature: from -30°C to + 70°C.

Operating humidity: 20% -95% RH.

Dimension: 135x121x40mm.

Certificates: RoHS, CE.
