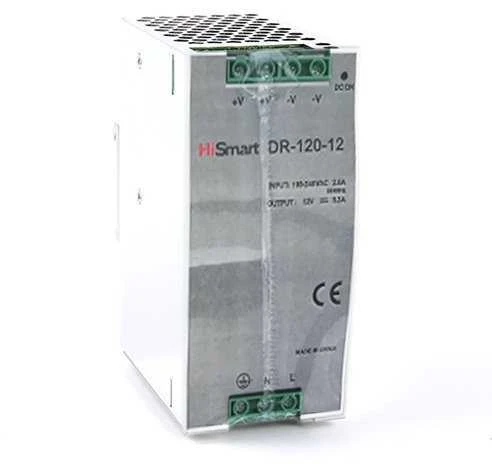

Extra Digital Power Adapteris DR-120-12 12V / 8.3A / 120W

Power supply 12V, 8.3A, 120W, DIN.

Features

Power supply operating in pulse mode. Can be installed on DIN rail: TS-35/7.5 or TS-35/15.

Cooling by free air convection.

Protections: short circuit / overload / over voltage.

Small volume, low weight, high efficiency.

Specifications

Type: switching power supply.

Input range AC: 90-264V. Frequency 47-63Hz.

Output voltage DC: 12V.

DC voltage adjustable range: -9% /+10%.

Rated current: 8.3A.

Rated power: 99.6W.

AC current: 2.6A/115V, 1.6A/230V.

Ripple and noise: 100mV p-p.

Effieciency: 82%.

Leakage current: <1mA / 240V AC.

Working temperature: -20°C~+60°C.

Working humidity: 20%-90%RH.

Dimension: 65.5x125.2x100mm.

Weight: 0.8kg.
