Delock PCI Express x16 Karte Wechselrahmen für 2 x M.2 NVMe SSD - Bifurcation

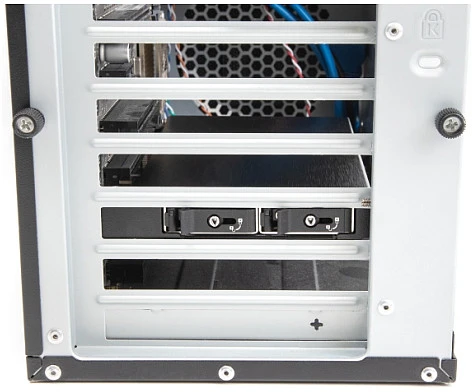

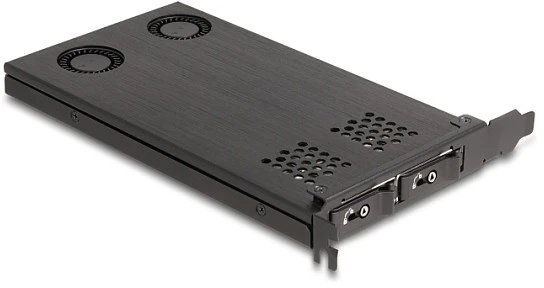

This Delock mobile rack can be installed in a PC slot and provides two M.2 slots in 2280, 2260, 2242 or 2230 formats.

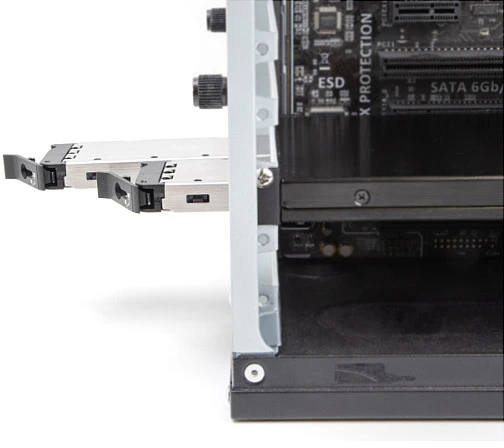

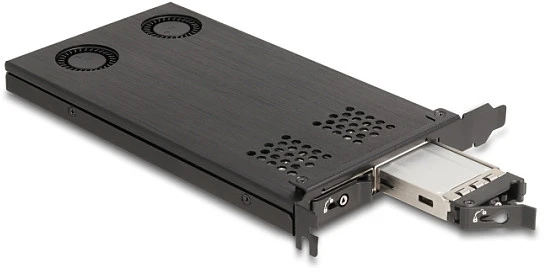

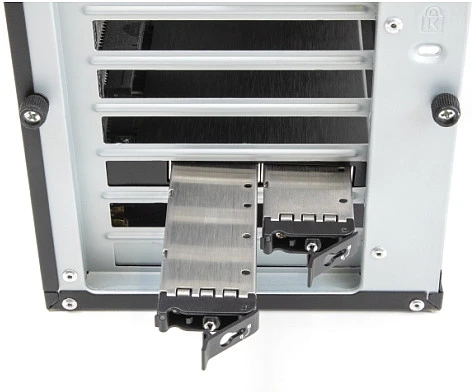

Fast SSD replacement
Thanks to a special mechanism, the SSD can be quickly and easily replaced. For example, data backups can be taken out and stored in a safe place.

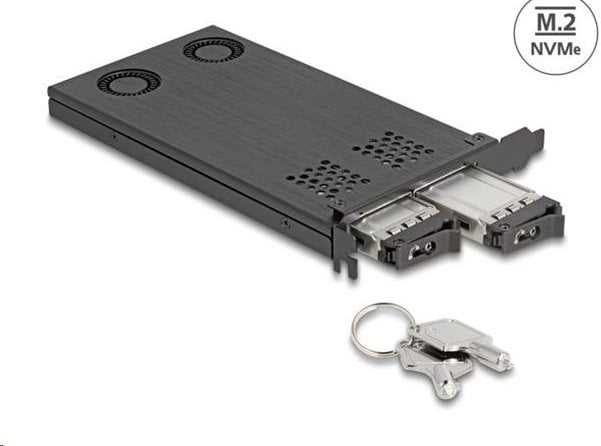

Tray with key locking and springs
The replacement tray is equipped with a lock to prevent unauthorized access. The sturdy metal carrier has springs at the top and bottom to reduce vibration, supporting its use in the world of mobile devices.

Note
Extra care must be taken to ensure that the disk drive is inserted all the way in, otherwise the connection to the SSD cannot be established.
Without PCIe branching, only the first M.2 slot on the card will be usable.

Technical details
Connector:
PCIe card:
1 x PCI Express x16, V4.0
2 x M.2 key M slot
M.2 key tray:
1 x M.2 key M male
1 x M.2 key M slot
Interface: PCIe/NVMe
Supports M.2 modules in 2280, 2260, 2242 and 2230 formats with M key or B+M key based on PCIe
Maximum component height per module: 1.5mm, double-sided module applications are supported

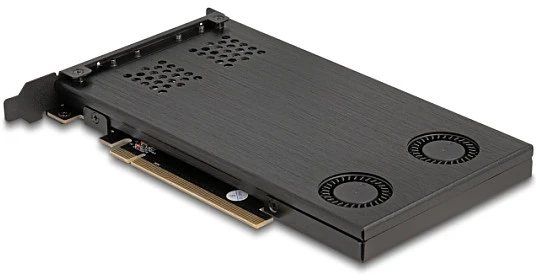

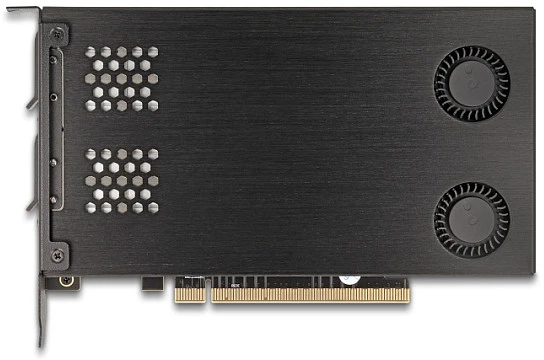

2 x fan
2 x LED indicator
Bootable, from UEFI version 2.3.1
Metal M.2 tray
Supports NVM Express (NVMe)
Supports S.M.A.R.T.
Operating temperature: -40 °C ~ 85 °C

System requirements
Linux Kernel 6.2 or higher
Windows 10/10-64/11
Windows Server 2022
PC with one free PCI Express x16 / x32 slot

Package contents
Mobile frame with 2 x M.2 tray
Cooler
2 x IM screws 2.0 x 4.0 mm, with 5.0 mm head
2 x wrench
User manual

Packaging
Box
