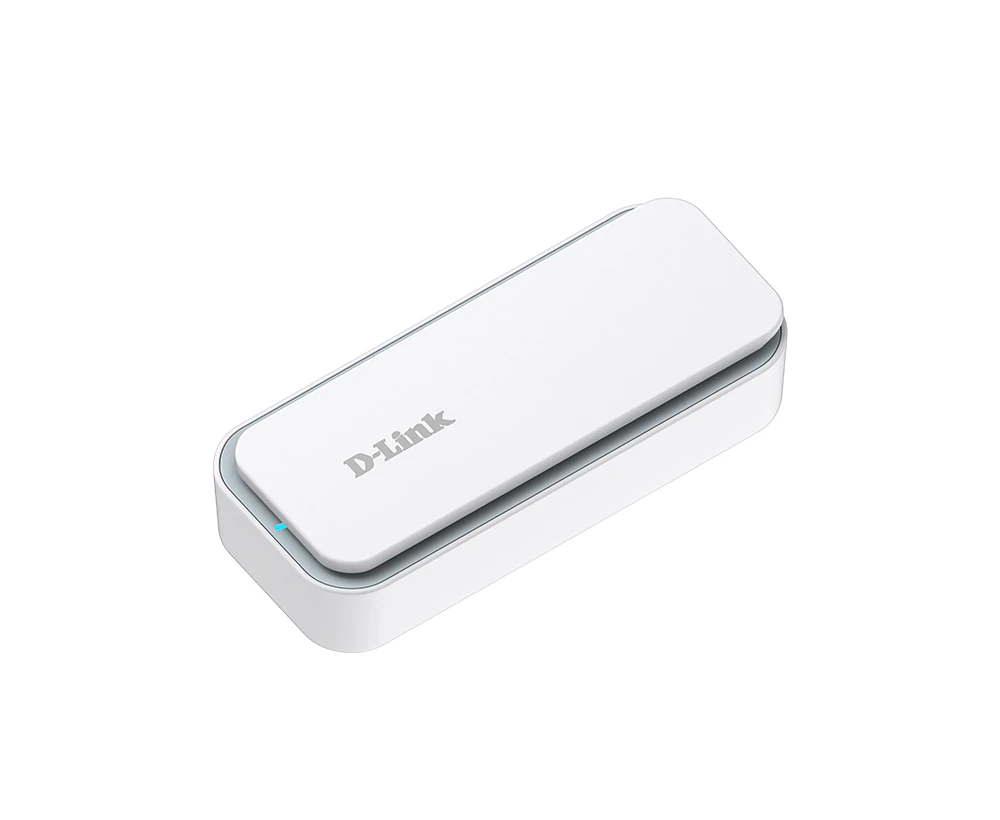

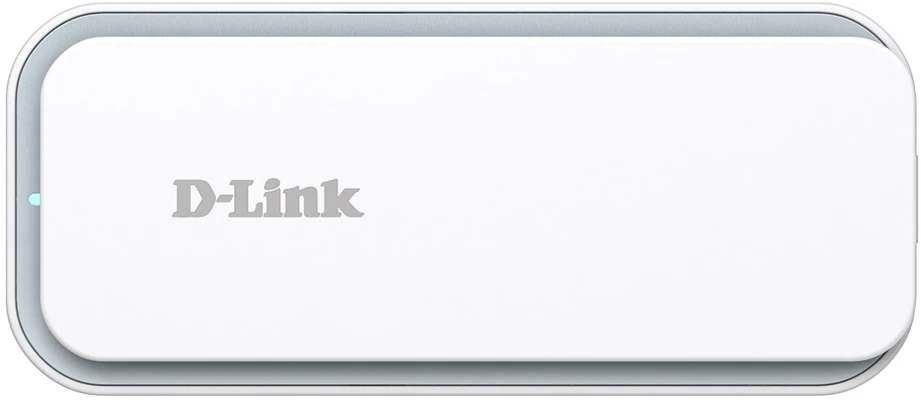

D-link D501

D-Link D501
Travel 5G USB adapter designed for instant internet connectivity anywhere, anytime

Features
5G NR support with download speeds up to 3.4 Gbps
Compatible with legacy 4G/LTE networks
USB Type-C interface for easy device connection
SIM card PIN protection support
Easy to get up and running without the need to install drivers - just insert the SIM card

Technical specifications
Interface: USB 3.1 Type-C, nano SIM slot (4FF)
Mobile networks: 5G NR / 4G LTE / DC-HSPA+ / HSPA / WCDMA
Supported bands:
- 5G: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78
- LTE: B1/3/5/7/8/20/28/32/38/40/41/42/43/71
- UMTS: B1/5/8
Antenna type: 4x internal antennas
LED indication:
- Green (flashing): connected to LTE
- Blue (flashing): connected to 5G
- Green (lit): LTE registration (not connected)
- Blue (lit): 5G registration (not connected)
- red (flashing): no signal or device error

Transmission speeds
5G NR (NSA): up to 3.4 Gbps (downlink), up to 550 Mbps (uplink)
5G NR (SA): up to 2.4 Gbps (downlink), up to 900 Mbps (uplink)
4G/LTE: up to 1.6 Gbps (downlink), up to 200 Mbps (uplink)
DC-HSPA: up to 42 Mbps (downlink), up to 5.76 Mbps (uplink)

System requirements
Windows 10 and later
Linux 5 and later
macOS 10.15.7 and later

Physical characteristics
Connector: USB 3.1 Type-C
Dimensions: 95 × 41 × 22.5 mm
Weight: 68 g
Power: Type-C 5V / 1.5A

Certification
CE
RoHS
