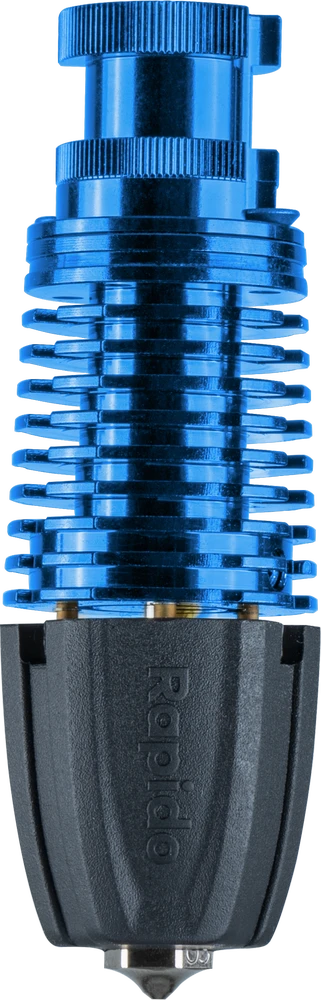

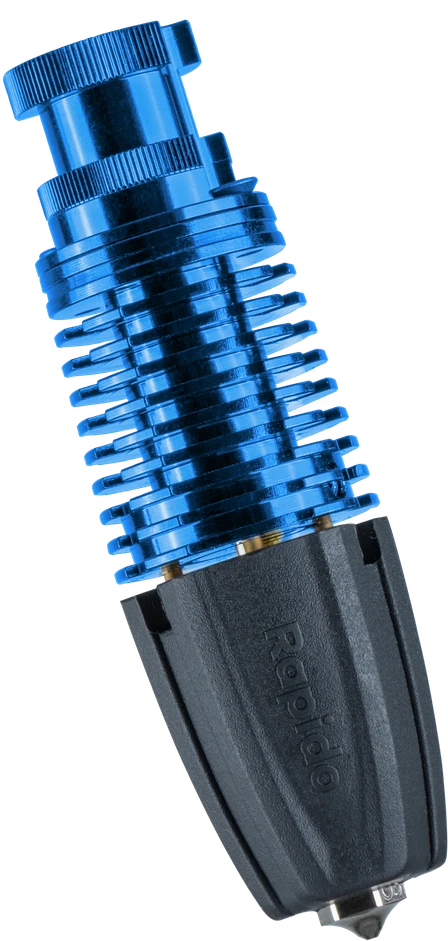

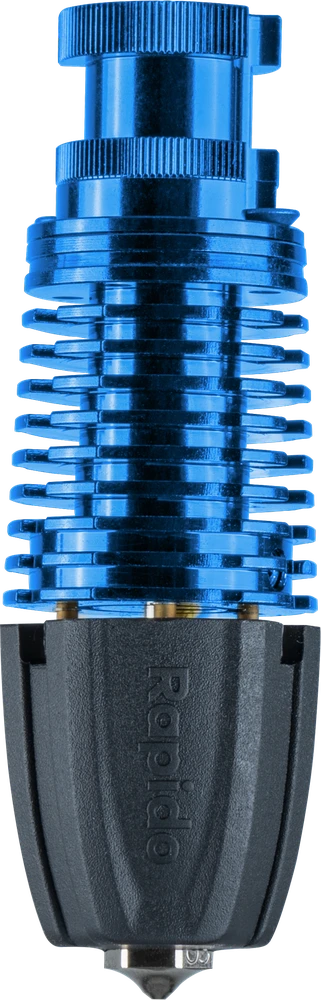

Phaetus Rapido Plus Hotend 2 HF

With precise temperature control and a lightweight design for optimal balance, the Rapido hotend 2 plus delivers excellent printing quality and consistency. The specially designed nozzle and heat block allow for fast and efficient melting of filament, resulting in speedy and consistent printing. Highlights

• Faster printing speed
• Max operating temperature 350°C
• Quick heat up to 200°C in 35 seconds
• One-handed nozzle changes capability

Rapido Plus Hotend 2

The Phaetus Rapido Plus 2 is a high-speed hotend that offers efficient heat management through an aluminum heatsink, titanium heatbreak, and a plated copper heatblock and nozzle. It heats up quickly, reaching 200°C in just 35 seconds, and allows for one-handed nozzle changes.

Superior Thermal Isolation of Heatbreak

Eliminate any kind of heat creep. Excellent thermal insulation reduce significantly the risk of the filament clogging. Enhanced wear resistance, designed to print fiber filled filaments. (100kg+)

High Efficient Heating Unit

A new rectangular ceramic heating unit achieves a high heating efficiency and reliability ( reaches 200°C in just 35s). Maximum printing temperature: 350°C.

Detachable PT1000 Temperature Sensor

The temperature sensor is replaceable and as such a PT1000 sensor can be used to meet the requirement for high temperature printing.

Ultra High Speed Printing with UHF

The newly designed heater-block has a long heating area which allows for high volumetric flows rates of up to 75mm³ (for UHF, 52mm³ on HF). With these flowrates your 3D printer can be pushed to its limits. Make your 3D printer a high-speed 3D printer with the Rapido Plus Hotend 2.

Easy Nozzle Change

The titanium-alloy screws with their low thermal conductivity create a rigid coupling of the heater-block and heatsink. This rigid structure allows for convenient one-handed nozzle changes.
