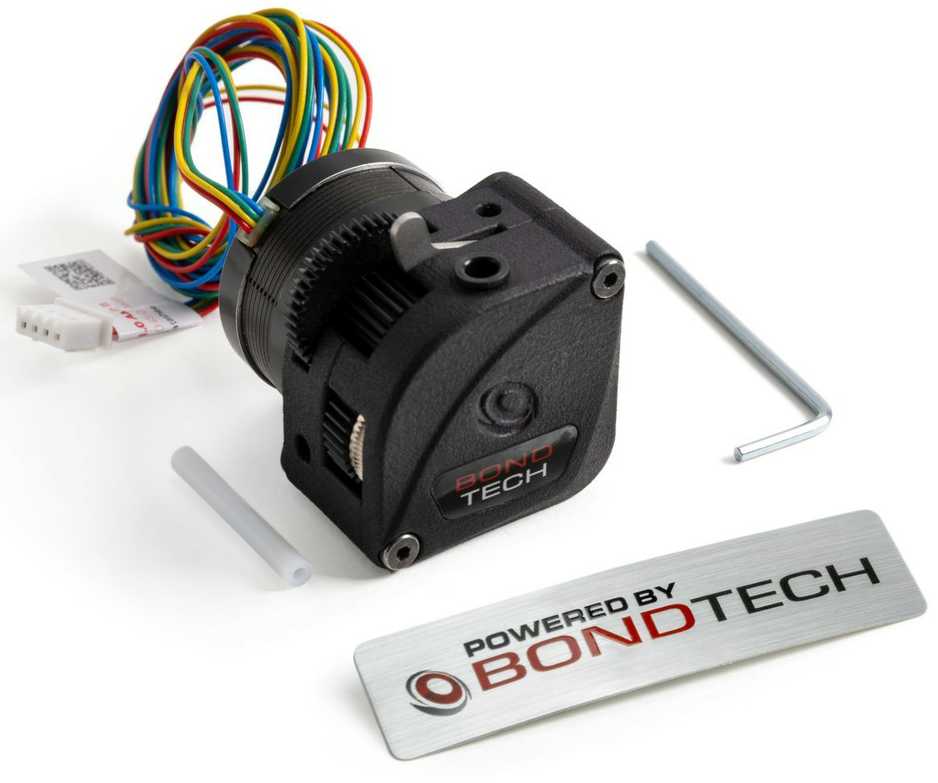

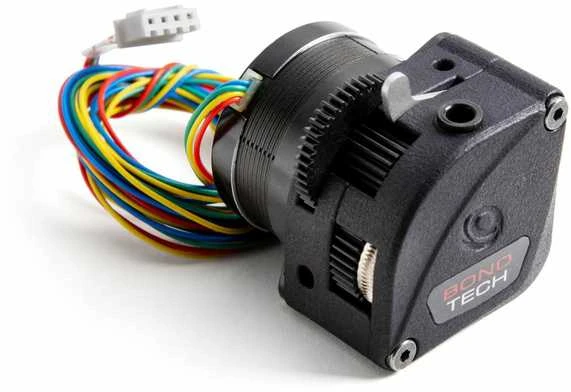

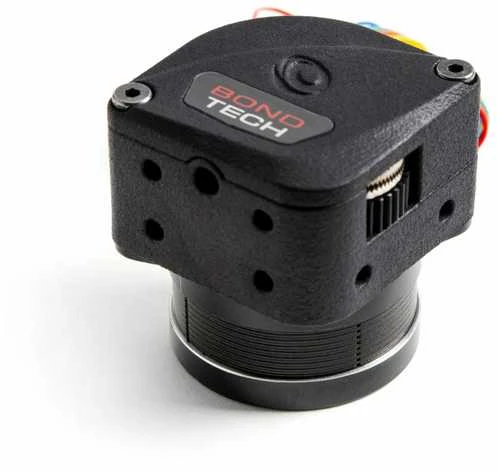

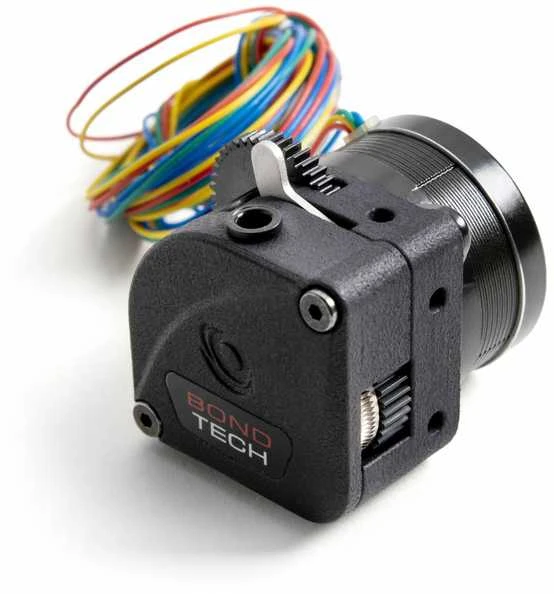

Bondtech LGX® Lite V2 eXtruder

The Bondtech LGX Lite V2 is a filament feeder based on the LGX® Large Gears eXtruder and uses Bondtechs new Dual Drive Technology based on larger drive gears. Highlights

• Tighter tolerances
• Improved build quality
• Extra mounting point
• Increased resistance to heat
• Micro form factor, featherweight and small footprint
• Enhanced filament grip

Bondtech LGX® Lite V2 eXtruder

The Bondtech LGX Lite V2 is a filament feeder based on the LGX® Large Gears eXtruder and uses Bondtechs new Dual Drive Technology based on larger drive gears.

Note: This extruder only supports 1.75 mm size filament and the extruder does not allow a mount plate between the motor and the extruder.



8 features of this Bondtech eXtruder:

• Larger drive wheels, for increased filament grip
• Filament pre-tension lever, for repeated results
• Drive wheels’ maintenance windows, for easy cleaning
• Compact, light & centered filament path, for increased performance and compatibility
• Multiple mounting hole patterns, for easy and flexible setup
• Compatible with Nema14 round stepper motors

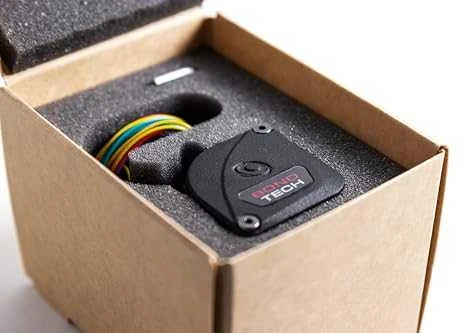

• Craft boxes without bleaching & no coating

3D Printed Housing using PA12 GF

The housing parts are professionally printed with polyamide 12 Glass Filled for maximum strength, precision and higher temperature resistance.

To lower our ecological impact we are reducing our use of chemical dyes. This part is supplied with a wax protective coating to lower sensitivity to moisture and grease, while remaining fully functional.
