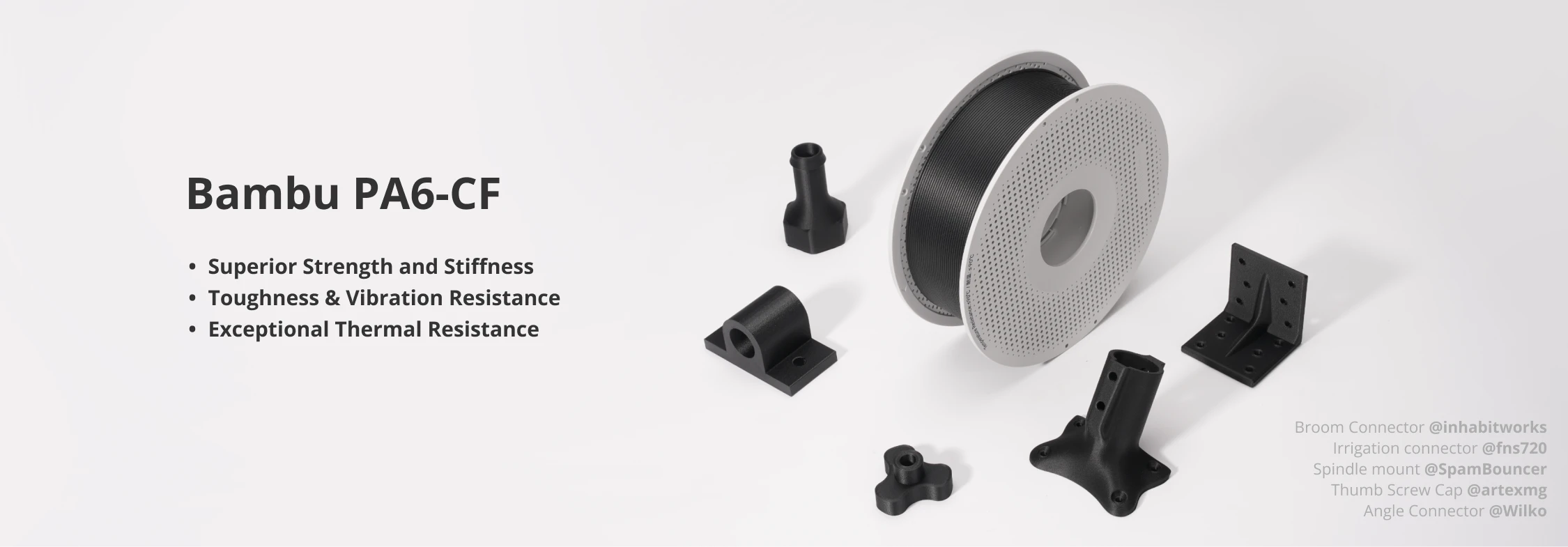

Bambu PA6-CF

Bambu PA6-CF is a carbon fiber reinforced PA6 (Nylon 6) filament. The carbon fiber reinforcement provides significantly high stiffness and strength properties in dry environments and maintains exceptional heat resistance and impact resistance. Similar to other Bambu CF Filaments, these outstanding mechanical properties make it an ideal choice for printing fixtures, clamps, automotive and mechanical components and various structural and engineering parts that used in dry environments.

3D Plastikas – Filamentas PA6-CF With spool/Su rite juodos spalvos | 1.75 mm, 1kg | Bambu Lab aprašymas - Prekės nuotrauka

Superior Strength and Stiffness

As a new member of Bambu high performance filaments, PA6-CF keeps superior stiffness and strength properties in dry environments, it is perfect for printing load-bearing structural components.

	Normal PA-CF	PA6-CF	Improved %
Strength (Bending Strength - XY, dry state)	128 MPa	151 MPa	18%
Stiffness (Bending Modulus - XY, dry state)	4420 MPa	5460 MPa	24%

Impact & Vibration Resistance

Bambu PA6-CF offers excellent impact resistance, ensuring effective vibration resistance for your prints. It is commonly used to print models that need to withstand impact, collision, and vibration.

* The prints of PA6-CF will be tougher after putting in humid environment more than 1 day.

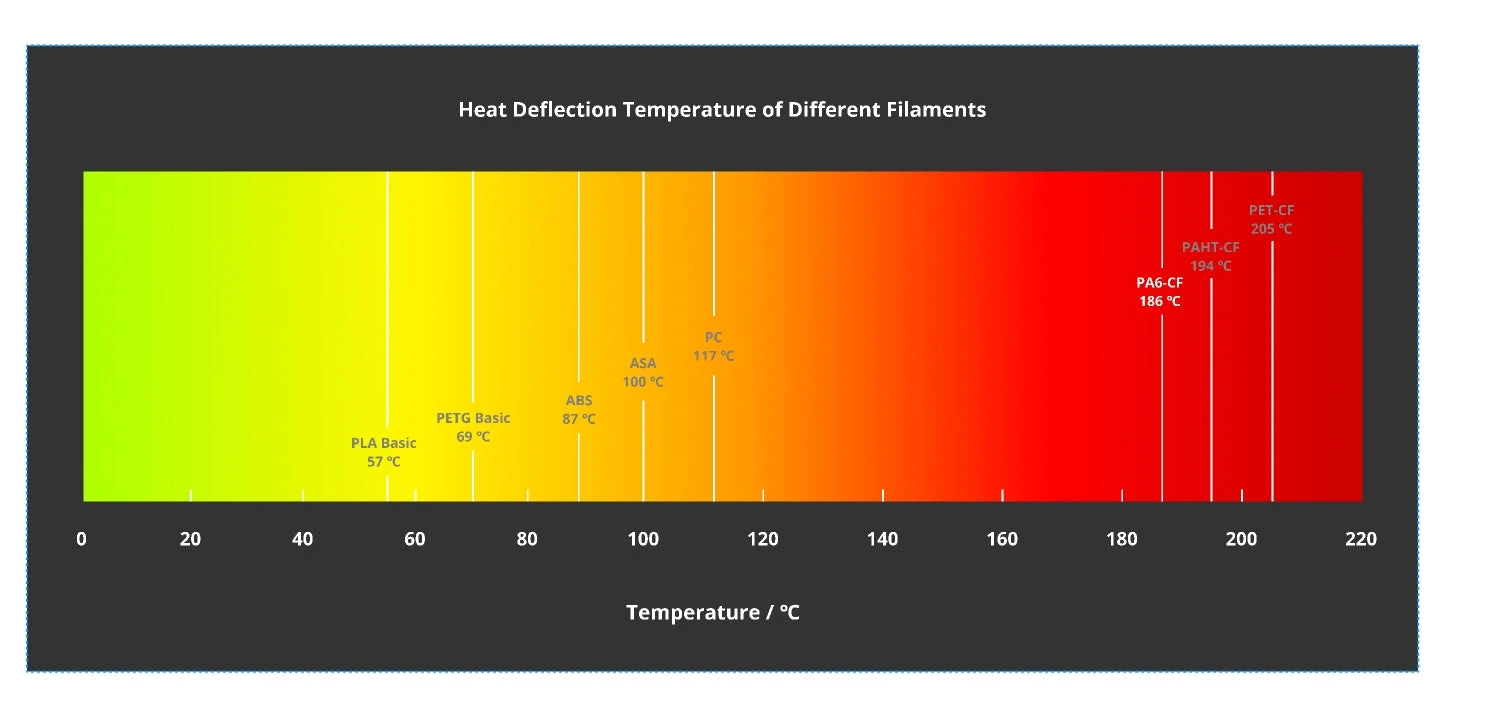

Exceptional Thermal Resistance

Filament	PLA Basic	PETG Basic	ABS	ASA	PC	PA6-CF	PAHT-CF	PET-CF
Heat Deflection Temperature / ℃ (0.45 MPa)	57 ℃	69 ℃	87 ℃	100 ℃	117 ℃	186 ℃	194 ℃	205 ℃

Parameters Comparison

Learn more different filaments comparison on Bambu Filament Guide >>

	Normal PA6-CF	PA6-CF	PAHT-CF
Composition	Nylon 6, carbon fiber	Nylon 6, carbon fiber	PA12 and other long-chain PA, carbon fiber
AMS Compatibility	NO	NO	YES
Dry Out Before Use	Required	Required	Required
Printing Speed	< 100 mm/s	< 100 mm/s	< 100 mm/s
Printer Type	Enclosure	Enclosure	Enclosure
Toughness (Impact Strength - XY, dry state)	35.7 kJ/m²	40.3 kJ/m²	57.5 kJ/m²
Toughness (Impact Strength - XY, wet state)	65.4 kJ/m²	57.2 kJ/m²	62.3 kJ/m²
Strength (Bending Strength - XY, dry state)	141 MPa	151 MPa	125 MPa
Strength (Bending Strength - XY, wet state)	67 MPa	95 MPa	115 MPa
Layer Strength (Bending Strength - Z, dry state)	72 MPa	80 MPa	61 MPa
Layer Strength (Bending Strength - Z, wet state)	31 MPa	45 MPa	49 MPa
Stiffness (Bending Modulus - XY, dry state)	4870 MPa	5460 MPa	4230 MPa
Stiffness (Bending Modulus - XY, wet state)	1890 MPa	3560 MPa	3640 MPa
Layer Adhesion (Impact Strength - Z, dry state)	11.6 kJ/m²	15.5 kJ/m²	13.3 kJ/m²
Heat Resistant（HDT, 0.45 MPa）	177 ℃	186 ℃	194 ℃
Saturated Water Absorption Rate / % (25 °C，55% RH)	3.80	2.35	0.88

Accessory Compatibility

	Recommended	Not Recommended
Build Plate	Smooth PEI Plate, Textured PEI Plate	Cool Plate SuperTack
Hotend	Hotend with Hardened Steel 0.4mm / 0.6mm (recommended) / 0.8 mm	Hotend with Stainless Steel Nozzle All Size
Glue	Glue Stick	/

Recommended Printing Settings
Drying Settings before Printing	80 °C, 8 - 12 h
Printing and Keeping Container's Humidity	< 20% RH (Sealed, with Desiccant)
Nozzle Temperature	260 - 290 °C
Bed Temperature (with Glue)	80 - 100 °C
Printing Speed	< 100 mm/s

Physical Properties
Density	1.09 g/cm³
Vicat Softening Temperature	212 °C
Heat Deflection Temperature	186 °C
Melting Temperature	223 °C
Melt Index	6.8 ± 0.6 g/10 min

Mechanical Properties
Tensile Strength	102 ± 7 MPa
Breaking Elongation Rate	5.8 ± 1.6 %
Bending Modulus	5460 ± 280 MPa
Bending Strength	151 ± 8 MPa
Impact Strength	40.3 ± 2.5 kJ/m²
